Angle Steel
2"x2" 50x50x5 Carbon Galvanized Main Gate Pole Designs Slotted Rack Iron Shearing Structural Steel Angle bar with Hole
Product Description
Angle steel is widely used in many fields such as housing construction, bridges, tunnels, wire towers, ships, brackets, steel structures, etc., and plays the role of supporting or fixing structures.

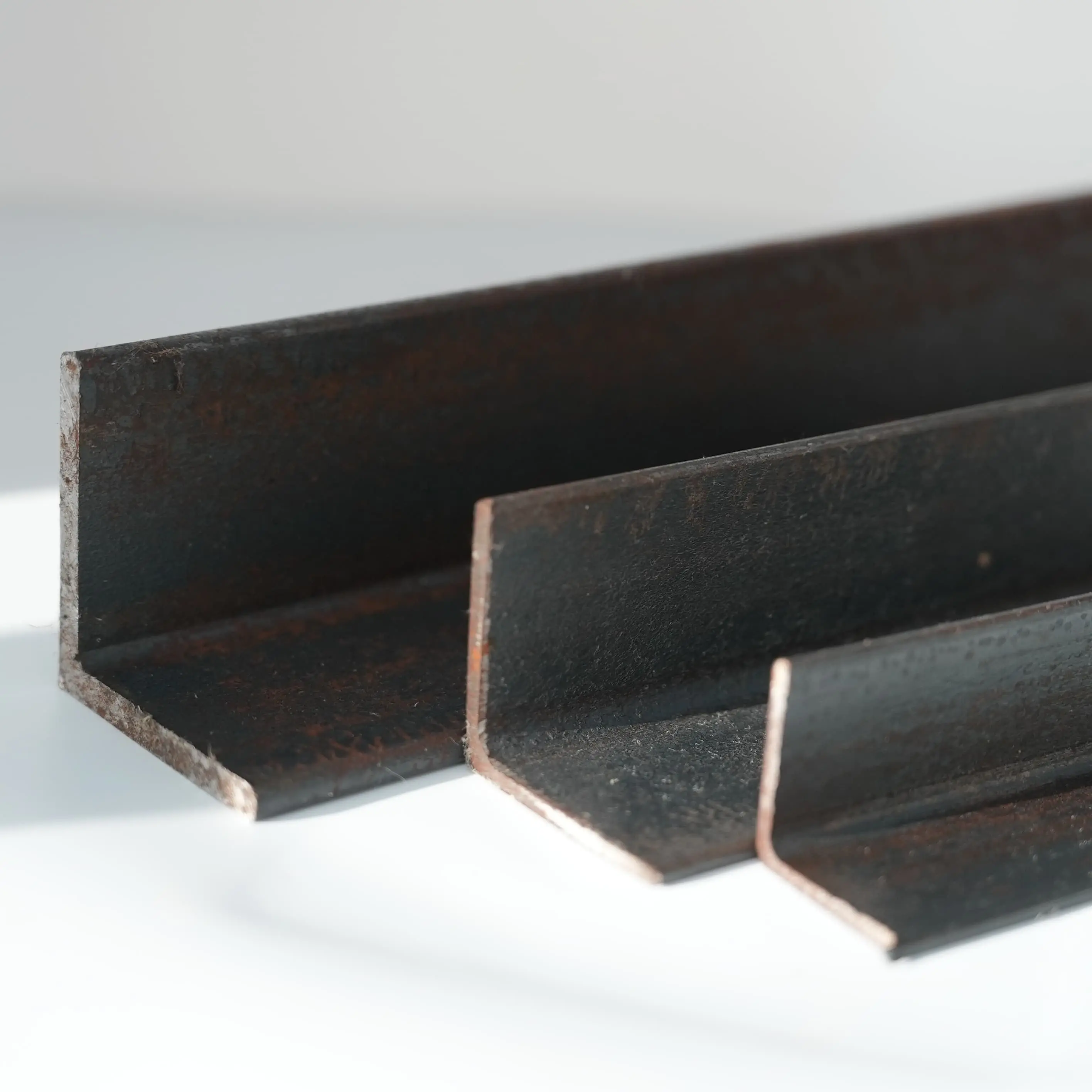

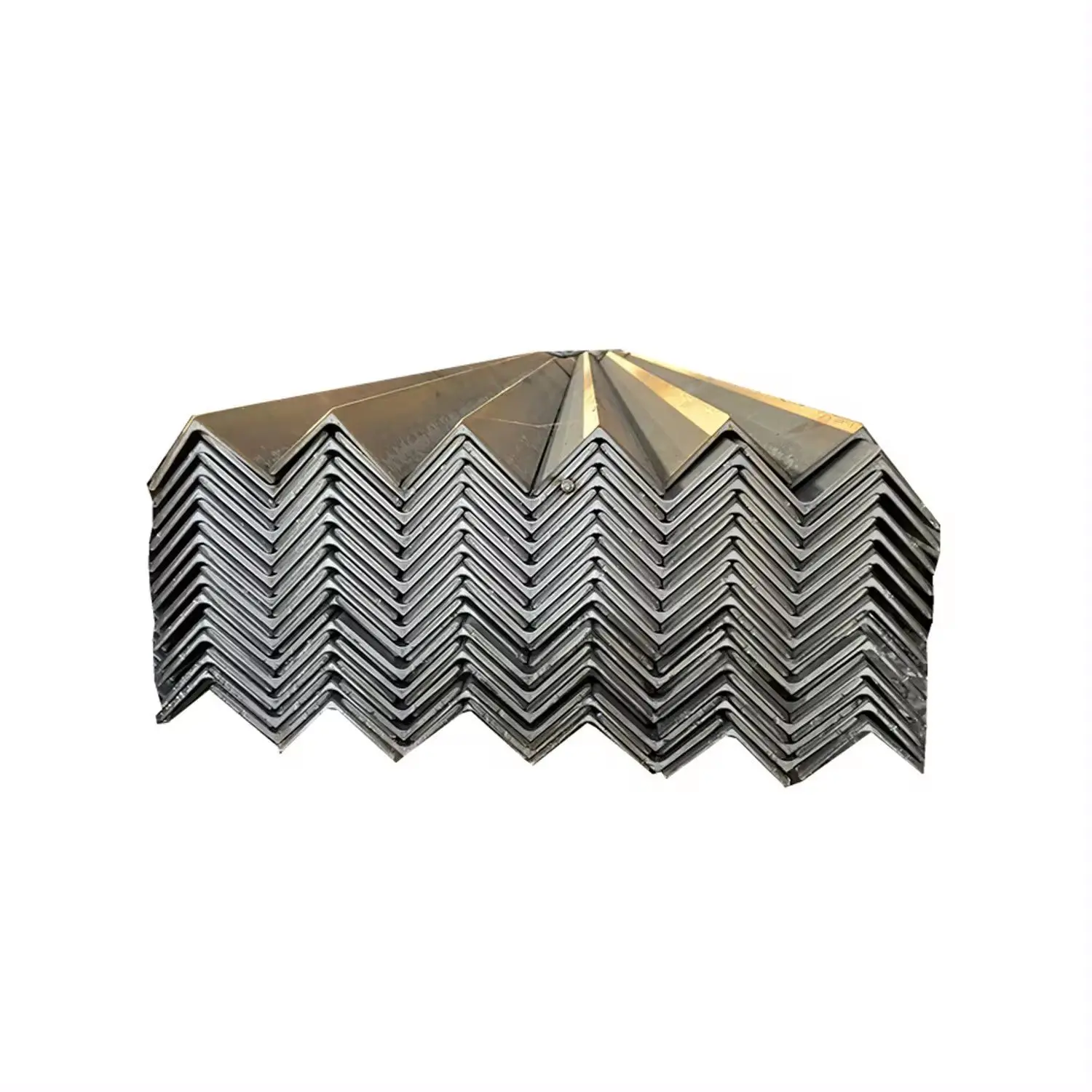

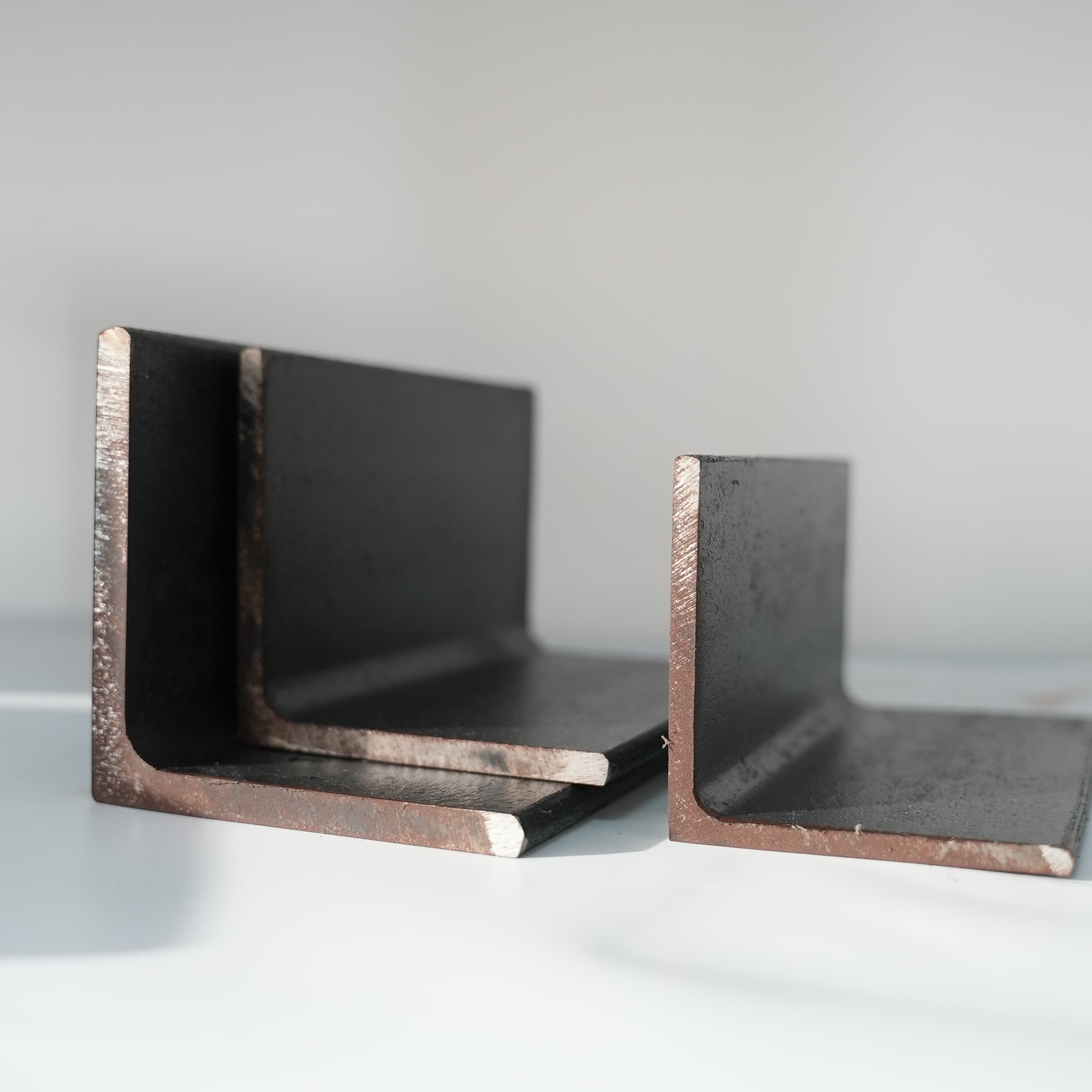

Angle steel is a long steel strip that forms a right angle on both sides, and the material is ordinary carbon structural steel and low-alloy steel. According to the different specifications on both sides of the angle steel, it is divided into equal angle steel and unequal angle steel.
The angle steel is angular and the structure gives it good supporting strength. With the same support strength, the angle steel is lighter, consumes less material, and costs less.
Product Parameters
| equal angle steel | |||||
| (mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
| 25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
| 25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
| 30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
| 30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
| 40*3 | 1.852 | 80*7 | 8.525 | 125*14 | 26.193 |
| 40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
| 40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
| 50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 29.49 |
| 50*5 | 3.77 | 90*7 | 9.658 | 140*16 | 35.393 |
| 50*6 | 4.465 | 90*8 | 10.946 | 160*10 | 24.729 |
| 60*5 | 4.52 | 90*10 | 13.476 | 160*12 | 29.391 |
| 60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
| 63*5 | 4.822 | 100*6 | 9.366 | 160*16 | 38.518 |
| 63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
| 63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
| 63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
| 70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
| 70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
| 70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
| 70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
| 75*5 | 5.818 | 110*10 | 16.69 | 200*20 | 60.056 |
| 75*6 | 6.905 | 110*12 | 19.782 | ||
| Unequal angle steel | |||||
| (mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
| 25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
| 32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
| 32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
| 40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
| 40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 14.1 |
| 45*28*3 | 1.687 | 80*50*8 | 7.745 | 140*90*10 | 17.475 |
| 45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
| 50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
| 50*32*4 | 2.494 | 90*56*8 | 8.779 | 160*100*10 | 19.872 |
| 56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
| 56*36*4 | 2.818 | 100*63*8 | 9.878 | 160*100*16 | 30.853 |
| 56*39*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22.273 |
| 63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
| 63*40*5 | 3.92 | 100*80*7 | 9.656 | 180*110*14 | 30.589 |
| 63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
| 70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
| 70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
| 70*45*7 | 6.011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
| 75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
| 75*50*6 | 5.699 | 110*70*10 | 13.476 | ||
Production Flow Chart
Project Case
Pack And Ship
Service Process
Making rich experience and good reputation as the backup, we will go on supplying high quality products and the best service. We sincerely cooperate with you for better future!
Certificate
Customer Praise
Plant And Equipment
We have advanced production equipment and a professional technical team. From raw material procurement to product production and global sales, we have achieved seamless full-process management.
FAQ
Q: Can you send samples?
A: Of course, we can send samples to all over the world, our samples are free, but customers need to afford the express cost.
Q: What product information do I need to provide?
A: You need to provide the grade, size and quantity you need to purchase.
Q: What shipping ports are there?
A: Generally, we ship from Shanghai, Tianjin, Qingdao ports, and other ports can also be selected according to your needs.
Q: About the product price?
A: Due to the cyclical changes in raw material prices, prices vary in different periods.
Q: What certifications do your products have?
A: We have ISO 9001, SGS, CE and other certifications.
Q: How do you ship the goods and how long does it take to arrive?
A: Samples are usually shipped by DHL, UPS, FedEx or TNT. Airline and sea transportation are also optional, we will provide you with the fastest transportation plan according to the situation.
Q: Can I visit your factory?
A: Of course, we welcome customers from all over the world to visit our factory.
Q:Is there any quality inspection before product loading?
A: Of course, all of our products have been strictly inspected for quality before packaging, and unqualified products will be
destroyed.
Q: How is the product packaged?
A: The inner layer has waterproof paper and the outer layer has iron packaging, and it is fixed with fumigated wooden pallets. it can Effectively protect products from corrosion during ocean transportation. Of course, we can also customize special packaging according to your requirements.
