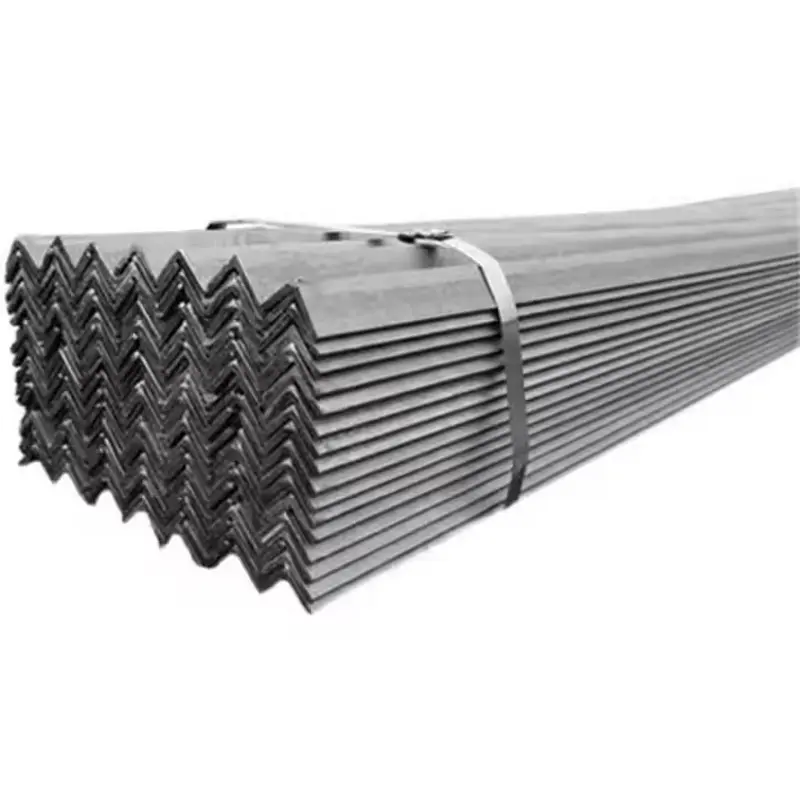

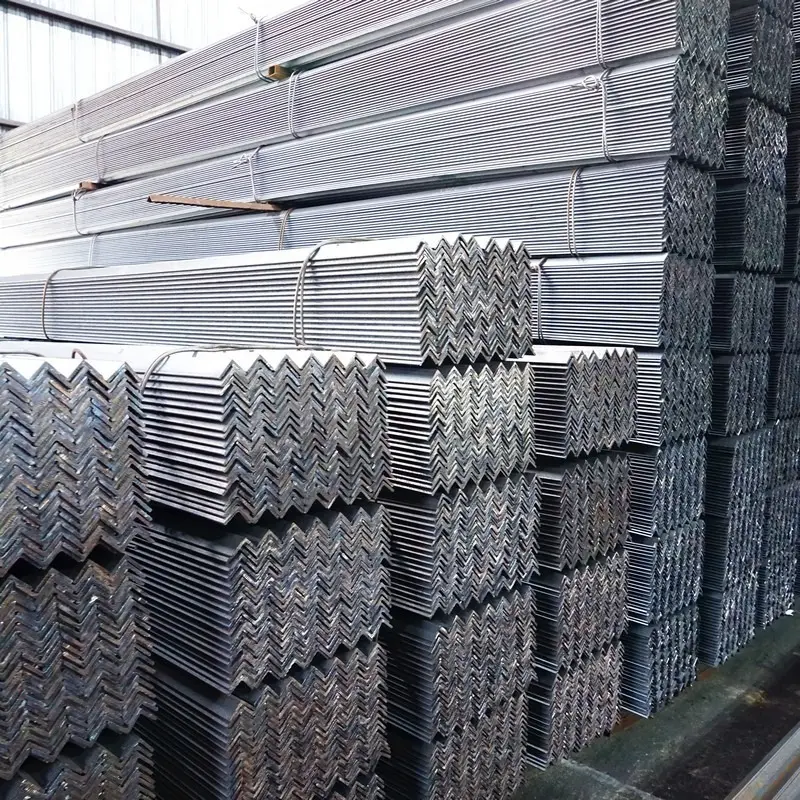

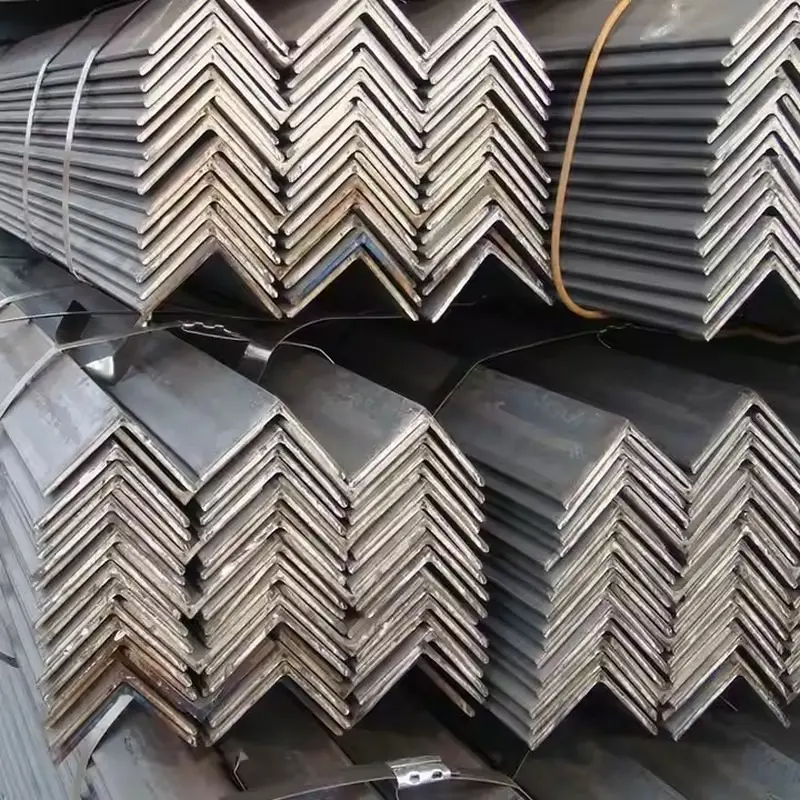

Low Price Angle Steel ASTM A36 A53 Q235 Q345 Carbon Equal Angle Steel Galvanized Iron
Product Description
Angle steel is mainly used to make frame structures, such as high-voltage transmission towers, frames on both sides of steel structure main sand, and tower cranes and wall rods on construction sites.
Guard columns and beams in workshops, small places such as flower-shaped racks on the roadside during festivals,
Hanging air conditioners and solar panels under windows, etc.
The manufacturing process of angle steel is relatively simple. Generally, large steel companies do not produce this thing. The production process can be divided into hot rolling and cold bending. Hot rolling is used for large-size angle steel, and cold bending is generally smaller. The standard process is to use steel (such as square billets) through a special steel rolling machine for multiple repeated rollings to form an x-shape. The material is guaranteed, there is a transition circle on the inside of the angle, and the mechanical properties are reliable. However, the products produced by small workshops are directly gas-bent (bent) with plates or strip steel. There is no wave arc in the inner part of the angle. However, due to the bending, the internal stress at the angle is large, the mechanical properties are poor, and the most important point is that the material is not guaranteed, and it may even be "ground steel". Such angle steel cannot be bent or welded after purchase, and at most can be used to drill long and short holes.
Product Parameters
equal angle steel | |||||
(mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
40*3 | 1.852 | 80*7 | 8.525 | 125*14 | 26.193 |
40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 29.49 |
50*5 | 3.77 | 90*7 | 9.658 | 140*16 | 35.393 |
50*6 | 4.465 | 90*8 | 10.946 | 160*10 | 24.729 |
60*5 | 4.52 | 90*10 | 13.476 | 160*12 | 29.391 |
60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
63*5 | 4.822 | 100*6 | 9.366 | 160*16 | 38.518 |
63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
75*5 | 5.818 | 110*10 | 16.69 | 200*20 | 60.056 |
75*6 | 6.905 | 110*12 | 19.782 |
Unequal angle steel | |||||
(mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 14.1 |
45*28*3 | 1.687 | 80*50*8 | 7.745 | 140*90*10 | 17.475 |
45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
50*32*4 | 2.494 | 90*56*8 | 8.779 | 160*100*10 | 19.872 |
56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
56*36*4 | 2.818 | 100*63*8 | 9.878 | 160*100*16 | 30.853 |
56*39*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22.273 |
63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
63*40*5 | 3.92 | 100*80*7 | 9.656 | 180*110*14 | 30.589 |
63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
70*45*7 | 6.011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
75*50*6 | 5.699 | 110*70*10 | 13.476 |
Production Flow Chart

Project Case



Pack And Ship

Certificate






Customer Praise



Plant And Equipment




FAQ
Q1:Can you provide samples? Is the sample free?
A1:We can provide samples. Sample is not free. But we can reduce the cost in the next order.
Q2:How does your factory do the quality control?
A2:We have quality inspection department, each process has the corresponding quality control standards, each workshop is equipped with quality inspection personnel.
Q3:Do you have the products in stock?
A3:Yes, Only a little , Our company provides customized products.
Q4:Can you provide OEM / ODM service?
A4:Yes, We can do OEM and ODM.
