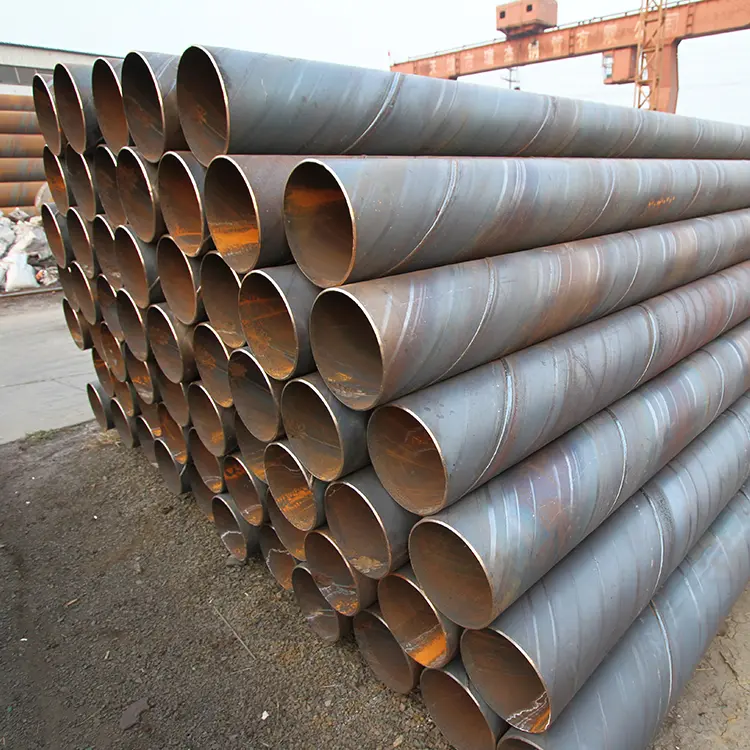

ASTM Q235B Spiral Welded Carbon Steel Pipe/tube Welded Tube for Water Well Casing Pipe

Spiral Weldeded Pipe

ASTM Q235B Spiral Welded Carbon Steel Pipe/tube Welded Tube for Water Well Casing Pipe

Production
Spiral Welded Steel Pipe
Standard
API 5L, API 5CT, SY/T5037, SY/T5040, GB/T9711.1,GB/T9711.2, A, B, X42-X80, L175-L555,L245NB, etc.
Material Q195,Q215,Q235,Q345,Gr.B X42,X52,X60,X70,X80
Out Diameter 159mm-3200mm
Wall Thickness 3mm-30mm

    Description


    Welded Pipe tube
    Straight seam welded pipes, steel pipes made by coil welding of hot-rolled or cold-rolled steel plates or steel strips, and pipes obtained by straight seam welding on welding equipment are called straight seam welded pipes.
    Among them, according to different uses and different post-production processes, (they can be roughly divided into scaffolding tubes, fluid tubes, wire casings, bracket tubes, guardrail tubes, etc.). Low-pressure fluid welded pipe is a type of straight seam welded pipe. It is generally used for water and gas transportation. After welding, it undergoes one more hydraulic pressure test than ordinary welded pipes.

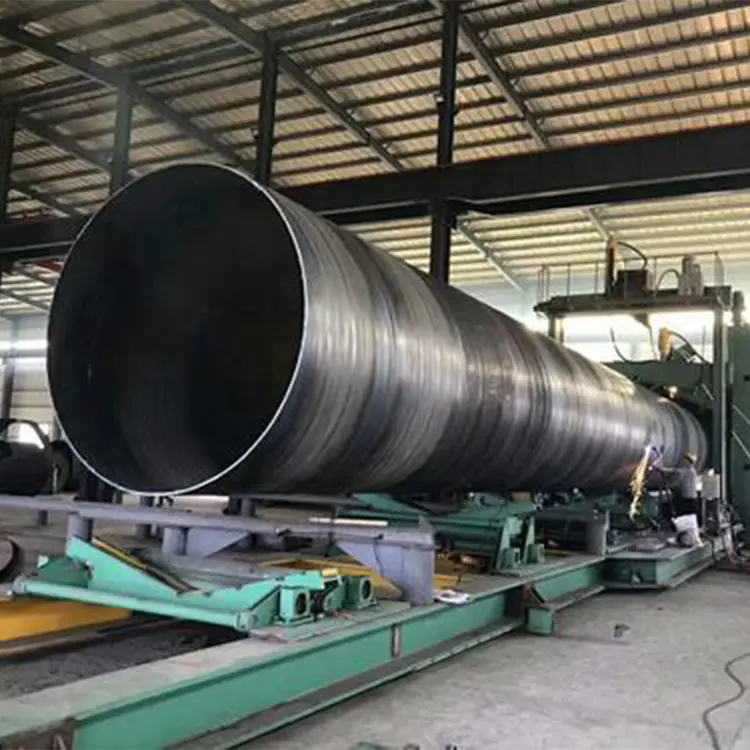

    Spiral steel pipe is a spiral seam steel pipe made of strip steel coil as raw material, often warm extruded and welded by automatic double wire double-sided submerged arc welding process. The spiral steel pipe sends the strip steel to the welding pipe unit, and the strip steel is rolled by multiple rolls. The strip steel is gradually rolled up to form a circular tube blank with an open gap. Adjust the reduction of the extrusion roll to control the weld gap at 1~3mm, and make both ends of the weld crater flush.

    Product Parameters

    Product Name

    Spiral Welded Steel Pipe

    Standard

    GB,AISI,ASTM,DIN,EN,SUS,UNS,JIS API 5L, API 5CT

    Grade

    Gr.B Q195-Q345 S275, S275jr, st37,etc

    Material

    API A106 GR.B A53 304 X42-X80, L175-L555,L245NB, etc.

    Thickness

    1.0-25mm

    Length

    12m, 6m, 1-12m or customized

    Surface

    Smooth and neat surface, no burrs and no pits

    Certificate

    CE, BIS, SGS, ISO9001

    Pipe Ends

    Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.

    Production Flow Chart

    管生产流程

    Project Case

    AerodromeBeijing-harbin ExpresswayBeijing-tianjin Railway

    Pack And Ship

    打包2

    Certificate

    证书 (1)证书证书证书 (5)证书 (4)证书(7) (1)

    Customer Praise

    2 (1)2 (4)2 (2)

    Plant And Equipment

    154467

    FAQ


    Q1: Are you trading company or manufacturer ?
    A1: We are manufacturer.
    Q2: How long is your delivery time?
    A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
    quantity.
    Q3: Do you provide samples ? is it free or extra ?
    A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q4: What is your terms of payment ?
    A4: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.or negotiable.
    Q5: How can you garantee what I got will be good ?
    A5:We are factory with 100% predelivery inspection which garantee the quality.
