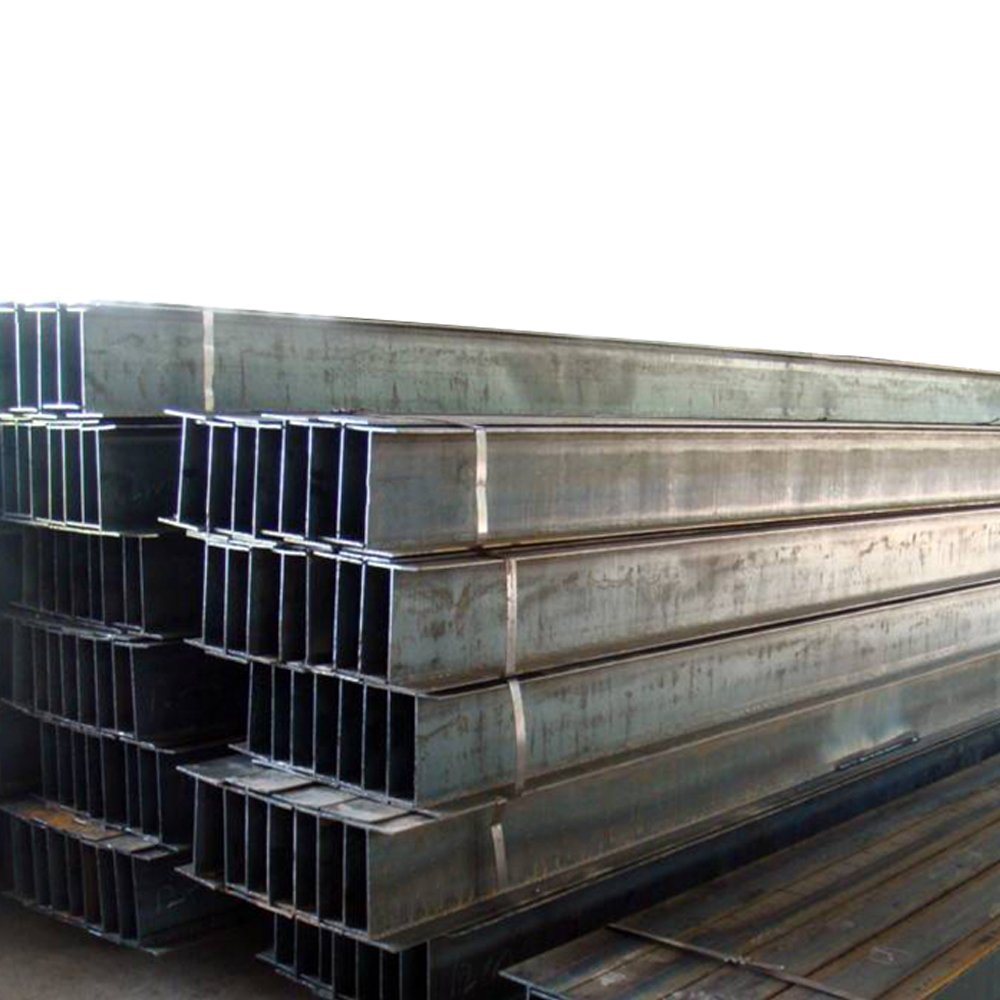

H Beam
ASTM A36 S235jr S275jr Wide Flange Structural Welded Carbon Hea Heb Ipe Section Hot Rolled Steel H Beams
Product Description
Elastic modulus: The elastic modulus of H-shaped steel and I-shaped steel is also different. The elastic modulus is the material's ability to respond to stress and deformation. H-beams have a higher elastic modulus and can better resist deformation, making them more stable in structural design. I-shaped steel has a low elastic modulus and is prone to deformation.
Application range: Due to its special cross-sectional shape and excellent load-bearing capacity, H-shaped steel is often used in building structures, bridges, factory facilities and other occasions. I-section steel is mostly used to build smaller structures, such as light factories, grocery shelves and furniture.
There are differences between H-shaped steel and I-shaped steel in cross-sectional shape, load-bearing capacity and application range. Appropriate steel can be selected according to specific project requirements.
Product Parameters
| GB H beam | JIS H beam | ||||||
| SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m |
| 100*100*6*8 | 17.2 | 390*300*10*16 | 107 | 100*100*6*8 | 16.9 | 388*402*15*15 | 140 |
| 125'125*6.5*9 | 23.8 | 396*199*7*11 | 56.7 | 125*125*6.5*9 | 23.6 | 390*300*10*16 | 105 |
| 150*75*5*7 | 14.3 | 400*150*8*13 | 55.8 | 150*75*5*7 | 14 | 396*199*7*11 | 56.1 |
| 148*100*6*9 | 21.4 | 400*200*8*13 | 66 | 148*100*6*9 | 20.7 | 400*200*8*13 | 65.4 |
| 150*150*7*10 | 31.9 | 400*400*13*21 | 172 | 150*150*7*10 | 31.1 | 400*150*8*13 | 55.2 |
| 175*90*5*8 | 18.2 | 400*408*21*21 | 197 | 175*90*5*8 | 18 | 400*400*13*21 | 172 |
| 175*175*7.5*11 | 40.4 | 414*405*18*28 | 233 | 175*175*7.5*11 | 40.4 | 400*408*21*21 | 197 |
| 194*150*6*9 | 31.2 | 428*407*20*35 | 284 | 194*150*6*9 | 29.9 | 414*405*18*28 | 232 |
| 198*99*4.5*7 | 18.5 | 440*300*11*18 | 124 | 198*99*4.5*7 | 17.8 | 428*407*20*35 | 283 |
| 200*100*5.5*8 | 21.7 | 446*199*8*12 | 65.5 | 200*100*5.5*8 | 20.9 | 440*300*11*18 | 121 |
| 200*200*8*12 | 50.5 | 450*200*9*14 | 76.5 | 200*200*8*12 | 49.9 | 446*199*8*12 | 65.1 |
| 200*204*12*12 | 56.7 | 482*300*11*15 | 115 | 200*204*12*12 | 56.2 | 450*200*9*14 | 74.9 |
| 244*175*7*11 | 44.1 | 488*300*11*18 | 129 | 244*175*7*11 | 43.6 | 482*300*11*15 | 111 |
| 248*124*5*8 | 25.8 | 496*199*9*14 | 79.5 | 248*124*5*8 | 25.1 | 488*300*11*18 | 125 |
| 250*125*6*9 | 29.7 | 500*200*10*16 | 89.6 | 250*125*6*9 | 29 | 496*199*9*14 | 77.9 |
| 250*250*9*14 | 72.4 | 506*201*11*19 | 103 | 250*250*9*14 | 71.8 | 500*200*10*16 | 88.2 |
| 250*255*14*14 | 82.2 | 582*300*12*17 | 137 | 250*255*14*14 | 81.6 | 506*201*11*19 | 102 |
| 294*200*8*12 | 57.3 | 588*300*12*20 | 151 | 294*200*8*12 | 55.8 | 582*300*12*17 | 133 |
| 294*302*12*12 | 85 | 594*302*14*23 | 175 | 294*302*12*12 | 83.4 | 588*300*12*20 | 147 |
| 298*149*5.5*8 | 32.6 | 596*199*10*15 | 95.1 | 298*149*5.5*8 | 32 | 594*302*14*23 | 170 |
| 298*201*9*14 | 65.4 | 600*200*11*17 | 106 | 300*150*6.5*9 | 36.7 | 596*199*10*15 | 92.5 |
| 300*150*6.5*9 | 37.3 | 606*201*12*20 | 120 | 300*300*10*15 | 93 | 600*200*11*17 | 103 |
| 300*300*10*15 | 94.5 | 692*300*13*20 | 166 | 300*305*15*15 | 105 | 606*201*12*20 | 118 |
| 300*305*15*15 | 106 | 700“300*13-24 | 185 | 340*250*9*14 | 78.1 | 692*300*13*20 | 163 |
| 340*250*9*14 | 79.7 | 792*300*14*22 | 191 | 346*174*6*9 | 41.2 | 700*300*13*24 | 182 |
| 346*174*6*9 | 41.8 | 800*300*14*26 | 210 | 350*175*7*11 | 49.4 | 800*300*14*26 | 207 |
| 350*175*7*11 | 50 | 900*300*16*28 | 243 | 350*350*12*19 | 135 | ||
| 350*350*12*19 | 137 | ||||||
Production Flow Chart
Project Case
Pack And Ship
Certificate
Customer Praise
Plant And Equipment
FAQ
Q: What the main products you can supply?
A: We are a professional and famous factory in China. The main products of our company include Stainless Steel Sheet/Coils/Tubes/Bars/Corrugated Sheets, Carbon Steel Sheets/Coils/Tubes, Galvanized Sheets/Coils/Tubes/Bars/Corrugated Sheets, PPGI/PPGL Sheets, PPGI/PPGL Coils, PPGI/PPGL Corrugated Sheets, Ductile Iron Pipe, Copper, Aluminum, etc.
Q: What is your payment terms?
A:Commonly two payment term for new customers
1) 30%T/T as deposit, 70% balance against B/L copy.
2) 100% Irrevocable L/C at sight.
If you need other terms, please feel free to contact us. We will try our best.
Q: How about the samples? Is it free or extra fees?
A: Usually, we would like to supply the samples before order. If the samples are in stock, it will be free. If the samples need to be produced, we will charge some reasonable cost. But this amount will be deducted from your first order invoice.
Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so common products size orders just need 7 days from stocks. If there are special size orders, it will cost 7-15 days.
