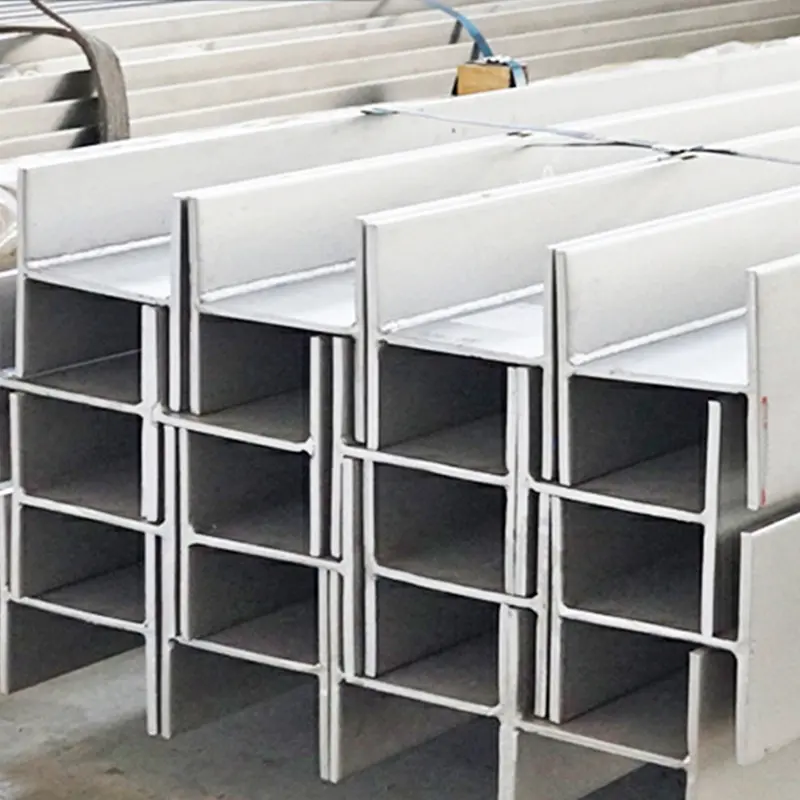

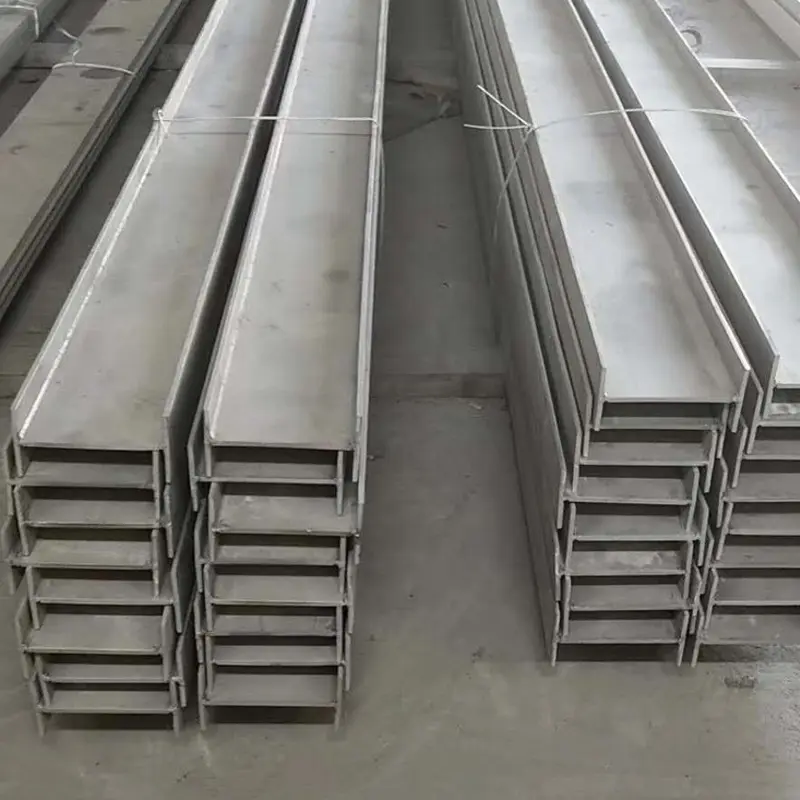

H Beam
SM490 H-Shape H Beam Construction Quality Steel Price China Supplier SS400 300*150*6.5*9mm H Beam
Product Description
Features of H-shaped steel:
High structural strength; Compared with I-shaped steel, it has a large section modulus and can save 10-15% of metal under the same load-bearing conditions.
Flexible and rich design styles; Under the same beam height, the span of the steel structure can be 50% larger than that of the concrete structure, making the building layout more flexible.
Light weight of the structure; Compared with the concrete structure, the reduction of the structure's weight reduces the internal force of the structure design, which can make the foundation treatment requirements of the building structure low, the construction is simple, and the cost is reduced.
High structural stability; The steel structure mainly composed of hot-rolled H-shaped steel has a scientific and reasonable structure, good plasticity and flexibility, and high structural stability. It is suitable for building structures that withstand large vibration and impact loads, and has strong resistance to natural disasters.
Product Parameters
| GB H beam | JIS H beam | ||||||
| SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m |
| 100*100*6*8 | 17.2 | 390*300*10*16 | 107 | 100*100*6*8 | 16.9 | 388*402*15*15 | 140 |
| 125'125*6.5*9 | 23.8 | 396*199*7*11 | 56.7 | 125*125*6.5*9 | 23.6 | 390*300*10*16 | 105 |
| 150*75*5*7 | 14.3 | 400*150*8*13 | 55.8 | 150*75*5*7 | 14 | 396*199*7*11 | 56.1 |
| 148*100*6*9 | 21.4 | 400*200*8*13 | 66 | 148*100*6*9 | 20.7 | 400*200*8*13 | 65.4 |
| 150*150*7*10 | 31.9 | 400*400*13*21 | 172 | 150*150*7*10 | 31.1 | 400*150*8*13 | 55.2 |
| 175*90*5*8 | 18.2 | 400*408*21*21 | 197 | 175*90*5*8 | 18 | 400*400*13*21 | 172 |
| 175*175*7.5*11 | 40.4 | 414*405*18*28 | 233 | 175*175*7.5*11 | 40.4 | 400*408*21*21 | 197 |
| 194*150*6*9 | 31.2 | 428*407*20*35 | 284 | 194*150*6*9 | 29.9 | 414*405*18*28 | 232 |
| 198*99*4.5*7 | 18.5 | 440*300*11*18 | 124 | 198*99*4.5*7 | 17.8 | 428*407*20*35 | 283 |
| 200*100*5.5*8 | 21.7 | 446*199*8*12 | 65.5 | 200*100*5.5*8 | 20.9 | 440*300*11*18 | 121 |
| 200*200*8*12 | 50.5 | 450*200*9*14 | 76.5 | 200*200*8*12 | 49.9 | 446*199*8*12 | 65.1 |
| 200*204*12*12 | 56.7 | 482*300*11*15 | 115 | 200*204*12*12 | 56.2 | 450*200*9*14 | 74.9 |
| 244*175*7*11 | 44.1 | 488*300*11*18 | 129 | 244*175*7*11 | 43.6 | 482*300*11*15 | 111 |
| 248*124*5*8 | 25.8 | 496*199*9*14 | 79.5 | 248*124*5*8 | 25.1 | 488*300*11*18 | 125 |
| 250*125*6*9 | 29.7 | 500*200*10*16 | 89.6 | 250*125*6*9 | 29 | 496*199*9*14 | 77.9 |
| 250*250*9*14 | 72.4 | 506*201*11*19 | 103 | 250*250*9*14 | 71.8 | 500*200*10*16 | 88.2 |
| 250*255*14*14 | 82.2 | 582*300*12*17 | 137 | 250*255*14*14 | 81.6 | 506*201*11*19 | 102 |
| 294*200*8*12 | 57.3 | 588*300*12*20 | 151 | 294*200*8*12 | 55.8 | 582*300*12*17 | 133 |
| 294*302*12*12 | 85 | 594*302*14*23 | 175 | 294*302*12*12 | 83.4 | 588*300*12*20 | 147 |
| 298*149*5.5*8 | 32.6 | 596*199*10*15 | 95.1 | 298*149*5.5*8 | 32 | 594*302*14*23 | 170 |
| 298*201*9*14 | 65.4 | 600*200*11*17 | 106 | 300*150*6.5*9 | 36.7 | 596*199*10*15 | 92.5 |
| 300*150*6.5*9 | 37.3 | 606*201*12*20 | 120 | 300*300*10*15 | 93 | 600*200*11*17 | 103 |
| 300*300*10*15 | 94.5 | 692*300*13*20 | 166 | 300*305*15*15 | 105 | 606*201*12*20 | 118 |
| 300*305*15*15 | 106 | 700“300*13-24 | 185 | 340*250*9*14 | 78.1 | 692*300*13*20 | 163 |
| 340*250*9*14 | 79.7 | 792*300*14*22 | 191 | 346*174*6*9 | 41.2 | 700*300*13*24 | 182 |
| 346*174*6*9 | 41.8 | 800*300*14*26 | 210 | 350*175*7*11 | 49.4 | 800*300*14*26 | 207 |
| 350*175*7*11 | 50 | 900*300*16*28 | 243 | 350*350*12*19 | 135 | ||
| 350*350*12*19 | 137 | ||||||
Production Flow Chart
Project Case
Pack And Ship
Certificate
Customer Praise
Plant And Equipment
FAQ
1.Will you deliver the goods on time?
Yes,we promise to provide best quality products and delivery in time no matter if the price change lot or not, Honesty is our company's tenet.
2.How can I get your quotation as soon as possible?
The email and fax will be checked in 24 hours, meanwhile, the skype will be online in 24 hours Please tell us the order information about quantity,Specification(steel type, material, size )and destination port, you will get the latest price.
3.How about the sample if I need?
The sample will be offered for free if you need, but the freight will be covered by our customer. If we have cooperation, the freight will be covered by our company.
4.How about the MOQ?
Generally, the trail order will be accepted.The MOQ can be confirmed according to the different products. For example, the MOQ of PPGI will be 10MT.
