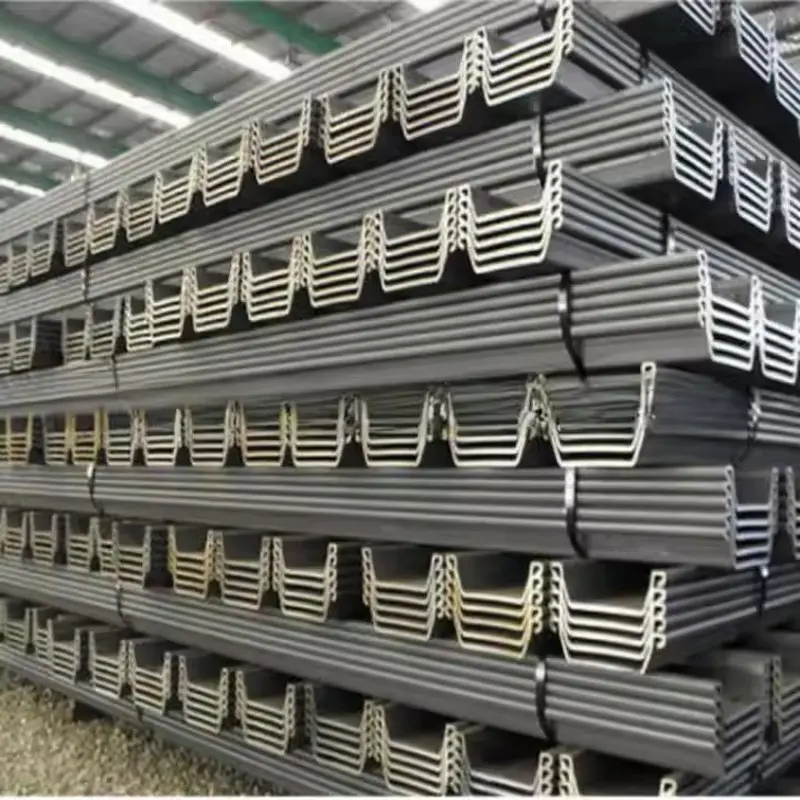

Steel Sheet Pile
High Quality Structural Steel Sheet Pile Sheet Pilling
1.Steel sheet piles are long structural sections with a vertical interlocking system that creates a continuous wall. The walling is widely constructed to retain either soil or water in a particular portion or side. The capacity of the sheet pile to perform is dependent upon its geometry and the soil where is it piled.
2. It is often used in the construction of bridge cofferdam, temporary retaining wall of pipeline laying, dock parapet, etc., can stop the water enclosure, the advantages are high strength, easy to penetrate the soil layer, and can be reused. It plays an important role in construction and civil engineering, which can improve efficiency and ensure project safety.
3.Sheet piles are commonly used for retaining walls, land reclamation, underground structures such as car parks and basements, in marine locations for riverbank protection, seawalls, cofferdams.
Function, appearance and practical value are the criteria used by people when choosing building materials today. Steel sheet piles meet the above three points: the elements of their manufacturing components provide a simple and practical structure that meets all the requirements for structural safety and environmental protection, and the buildings completed with steel sheet piles are very attractive.
The application of steel sheet piles runs through and extends to the entire construction industry, from the use of traditional hydraulic engineering and civil processes and the application of railway and tram tracks to the control of environmental pollution.
| Material | SY295/SY390/Q345B |
| Tolerance | ±5% |
| Brand name | Fushunde |
| Processing services | Cutting/Welding/Bending |
| Shipping date | 15-21days |
| Price terms | FOB/CFR/CIF/EXW/ETC |
| Technology | Hot rolled |
| Package | Standard Sea-worthy Packing |
Product Parameters
| Specification | Width(mm) | High(mm) | Thick t(mm) | Thick s(mm) | Weight(kg/m) |
| 400 x 85 | 400 | 85 | 8.0 | 45.21 | 35.5 |
| 400 x 100 | 400 | 100 | 10.5 | 61.18 | 48.0 |
| 400 x 125 | 400 | 125 | 13.0 | 76.42 | 60.0 |
| 400 x 150 | 400 | 150 | 13.1 | 74.40 | 58.4 |
| 400 x 170 | 400 | 170 | 15.5 | 96.99 | 76.1 |
| 600 x 130 | 600 | 130 | 10.3 | 78.7 | 61.8 |
| 600 x 180 | 600 | 180 | 13.4 | 103.9 | 81.6 |
| 600 x 210 | 600 | 210 | 18.0 | 135.3 | 106.2 |
| 750 x 205 | 750 | 204 | 10.0 | 99.2 | 77.9 |
| 750 | 205.5 | 11.5 | 109.9 | 86.3 | |
| 750 | 206 | 12.0 | 113.4 | 89.0 |
