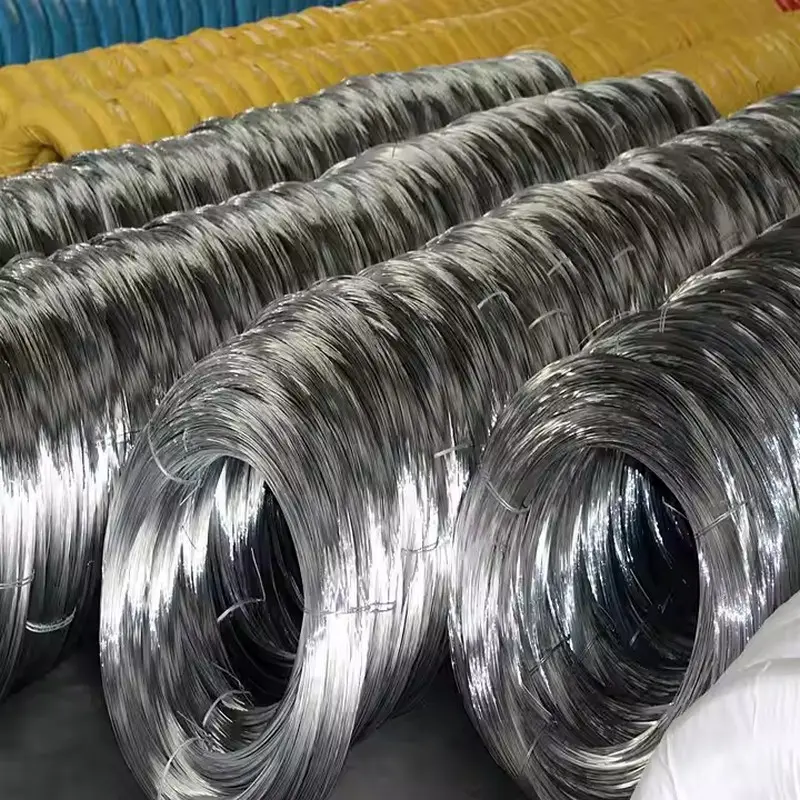

Galvanized Steel Wire
High Quality Architectural Galvanized Steel Wire
Product Description
1.It is made of high quality low carbon steel wire rod processing, is the use of high quality low carbon steel, after drawing forming, pickling rust removal, high temperature annealing, hot dip galvanizing. Cooling and other process processing.
2.Hot dip galvanizing is dipped in the zinc liquid melted by heating, the production speed is fast, the coating is thick but not uniform, the minimum thickness allowed by the market is 45 microns, and the maximum can reach more than 300 microns. The color is dark, the consumption of zinc metal is more, the infiltration layer is formed with the base metal, the corrosion resistance is good, and the hot dip galvanizing can be maintained for decades in the outdoor environment.
2.Hot dip galvanizing is dipped in the zinc liquid melted by heating, the production speed is fast, the coating is thick but not uniform, the minimum thickness allowed by the market is 45 microns, and the maximum can reach more than 300 microns. The color is dark, the consumption of zinc metal is more, the infiltration layer is formed with the base metal, the corrosion resistance is good, and the hot dip galvanizing can be maintained for decades in the outdoor environment.
3.Because the resulting coating is thicker, hot-dip galvanizing has better protective properties than electric galvanizing, so it is an important protective coating for steel parts used in harsh working environments. Hot-dip galvanized products in chemical equipment, petroleum processing, Marine exploration, metal structure, power transmission, shipbuilding and other industries have been widely used in the agricultural field such as pesticide irrigation, heating and construction such as water and gas transmission, wire bushing, scaffolding, Bridges, highway guardrail and other aspects, has been widely used.
Product Parameters
| Material | Q195/Sae1006/Sae1008/Sea1020 |
| Tolerance | ±5% |
| Standard | ASTM/GB |
| Processing services | Cutting/Bending |
| Shipping date | 15-21days |
| Price terms | FOB/CFR/CIF/EXW/ETC |
| Application | Construction |
| Package | Standard Sea-worthy Packing |
| Galvanized steel wire | |||||
| Diameter （mm） | Tolerance (mm) | Tensile Strength No Less Than (MPA) | Torsion Test No less Than (times) | Bend Times No Less Than (times) | Zinc Coating Mass No Less Than (g/m2) |
| 0.45 | +/-0.01 | 1770 | 28 | 5 | 5 |
| 0.5 | +/-0.01 | 1770 | 28 | 5 | 5 |
| 0.6 | +/-0.01 | 1770 | 28 | 9 | 5 |
| 0.7 | +/-0.01 | 1670 | 28 | 7 | 10 |
| 0.8 | +/-0.01 | 1670 | 28 | 13 | 10 |
| 0.9 | +/-0.02 | 1570 | 28 | 11 | 15 |
| 1 | +/-0.02 | 1470 | 27 | 9 | 20 |
| 1.2 | +/-0.02 | 1470 | 27 | 15 | 20 |
| 1.3 | +/-0.02 | 1370 | 27 | 13 | 20 |
| 1.4 | +/-0.02 | 1370 | 27 | 11 | 20 |
| 1.6 | +/-0.03 | 1370 | 27 | 13 | 20 |
| 1.8 | +/-0.03 | 1370 | 27 | 11 | 30 |
| 2 | +/-0.03 | 1270 | 25 | 10 | 30 |
| 2.4 | +/-0.03 | 1270 | 25 | 11 | 30 |
| 2.6 | +/-0.03 | 1270 | 25 | 10 | 35 |
| 2.77 | +/-0.03 | 1270 | 25 | 9 | 35 |
Production Flow Chart
Project Case
Pack And Ship
Service Process
Making rich experience and good reputation as the backup, we will go on supplying high quality products and the best service. We sincerely cooperate with you for better future!
Certificate
Customer Praise
Plant And Equipment
We have advanced production equipment and a professional technical team. From raw material procurement to product production and global sales, we have achieved seamless full-process management.
FAQ
Q: Can you send samples?
A: Of course, we can send samples to all over the world, our samples are free, but customers need to afford the express cost.
Q: What product information do I need to provide?
A: You need to provide the grade, size and quantity you need to purchase.
Q: What shipping ports are there?
A: Generally, we ship from Shanghai, Tianjin, Qingdao ports, and other ports can also be selected according to your needs.
Q: About the product price?
A: Due to the cyclical changes in raw material prices, prices vary in different periods.
Q: What certifications do your products have?
A: We have ISO 9001, SGS, CE and other certifications.
Q: How do you ship the goods and how long does it take to arrive?
A: Samples are usually shipped by DHL, UPS, FedEx or TNT. Airline and sea transportation are also optional, we will provide you with the fastest transportation plan according to the situation.
Q: Can I visit your factory?
A: Of course, we welcome customers from all over the world to visit our factory.
Q:Is there any quality inspection before product loading?
A: Of course, all of our products have been strictly inspected for quality before packaging, and unqualified products will be
destroyed.
Q: How is the product packaged?
A: The inner layer has waterproof paper and the outer layer has iron packaging, and it is fixed with fumigated wooden pallets. it can Effectively protect products from corrosion during ocean transportation. Of course, we can also customize special packaging according to your requirements.
