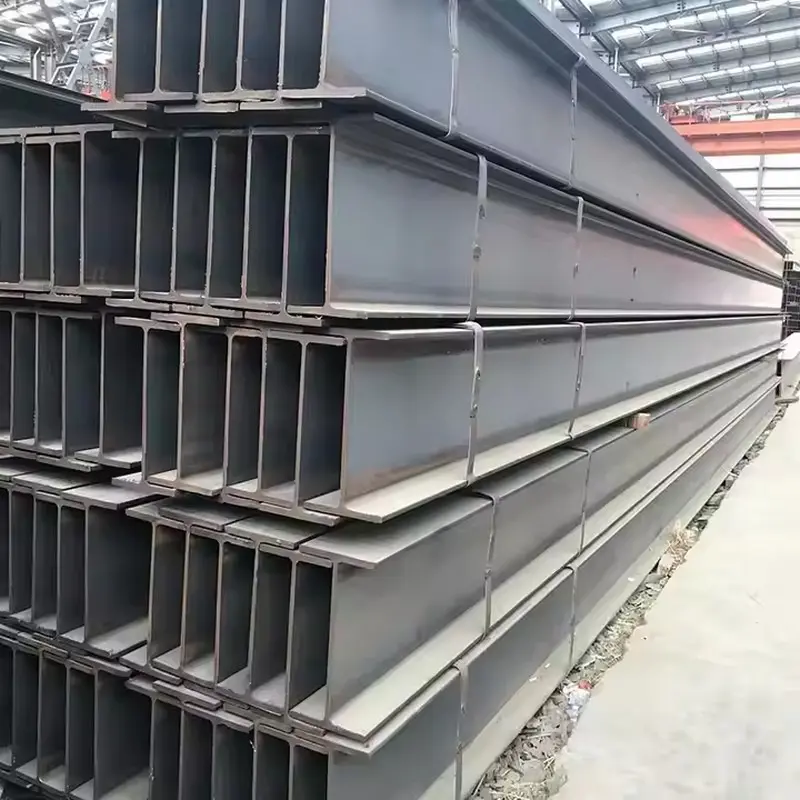

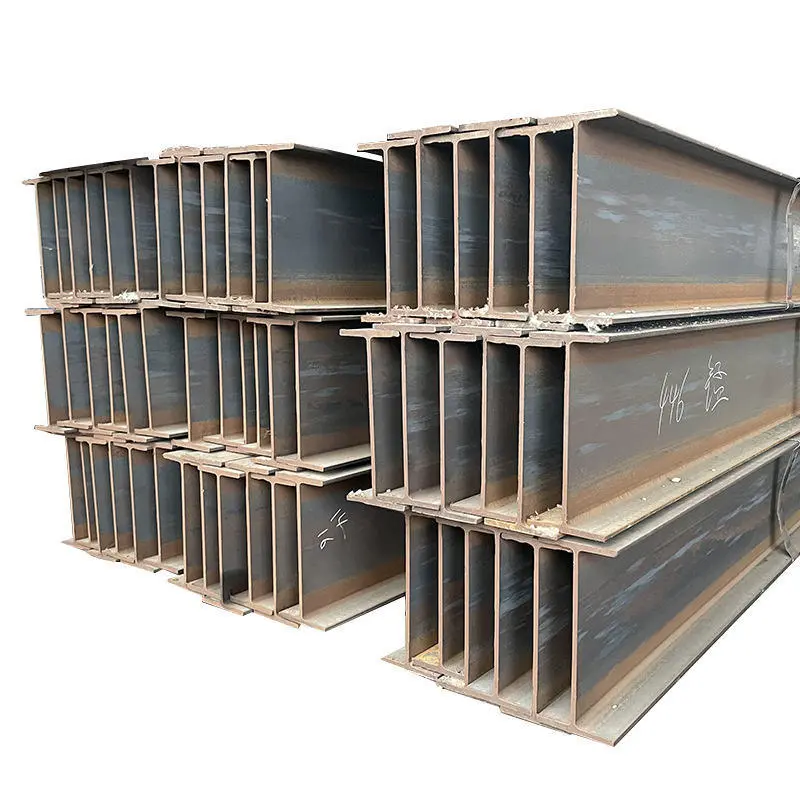

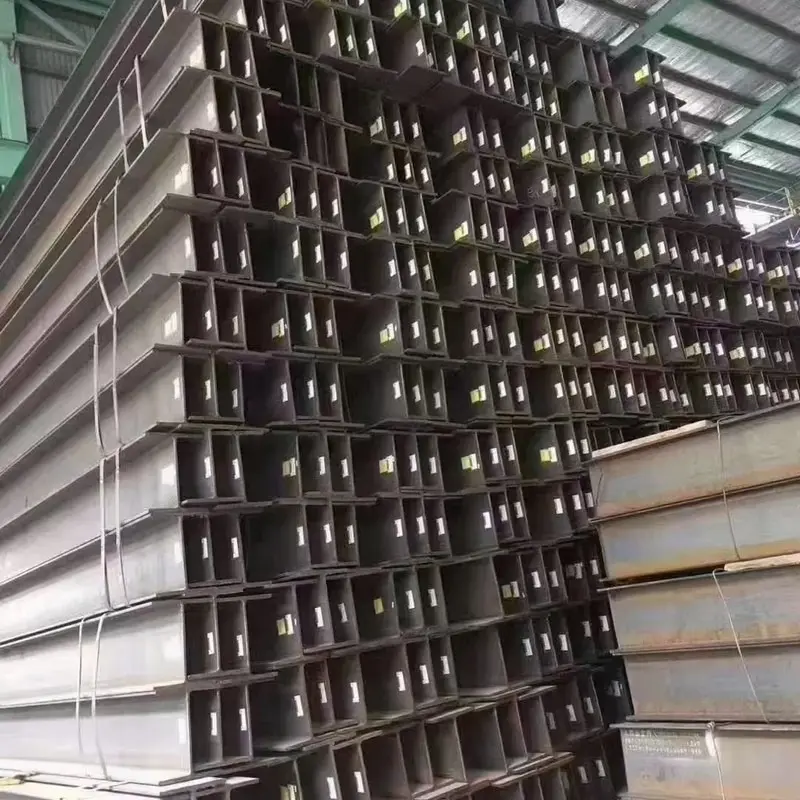

H Beam
Factory Direct Sale Carbon Steel H Beam I Profile for Container Frame and Construction
Product Description
Architectural H-beam: Mainly used for building structures and building supports, with small specifications and sizes, light weight, easy construction and installation, usually manufactured by hot rolling process, with good plasticity and toughness.
H-beam for machinery: Mainly used in the fields of machinery manufacturing and industrial equipment manufacturing, with large specifications and sizes, heavy weight, usually manufactured by welding process, with high strength and rigidity.
H-beam for transportation: Mainly used in the construction of transportation facilities such as railways, roads, bridges, etc., with large specifications and sizes, and can withstand large loads and stresses.
H-beam for ships: specially used for shipbuilding and offshore engineering construction, with high strength, high corrosion resistance, and good stability to meet the special requirements of the marine environment.
Product Parameters
| GB H beam | JIS H beam | ||||||
| SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m |
| 100*100*6*8 | 17.2 | 390*300*10*16 | 107 | 100*100*6*8 | 16.9 | 388*402*15*15 | 140 |
| 125'125*6.5*9 | 23.8 | 396*199*7*11 | 56.7 | 125*125*6.5*9 | 23.6 | 390*300*10*16 | 105 |
| 150*75*5*7 | 14.3 | 400*150*8*13 | 55.8 | 150*75*5*7 | 14 | 396*199*7*11 | 56.1 |
| 148*100*6*9 | 21.4 | 400*200*8*13 | 66 | 148*100*6*9 | 20.7 | 400*200*8*13 | 65.4 |
| 150*150*7*10 | 31.9 | 400*400*13*21 | 172 | 150*150*7*10 | 31.1 | 400*150*8*13 | 55.2 |
| 175*90*5*8 | 18.2 | 400*408*21*21 | 197 | 175*90*5*8 | 18 | 400*400*13*21 | 172 |
| 175*175*7.5*11 | 40.4 | 414*405*18*28 | 233 | 175*175*7.5*11 | 40.4 | 400*408*21*21 | 197 |
| 194*150*6*9 | 31.2 | 428*407*20*35 | 284 | 194*150*6*9 | 29.9 | 414*405*18*28 | 232 |
| 198*99*4.5*7 | 18.5 | 440*300*11*18 | 124 | 198*99*4.5*7 | 17.8 | 428*407*20*35 | 283 |
| 200*100*5.5*8 | 21.7 | 446*199*8*12 | 65.5 | 200*100*5.5*8 | 20.9 | 440*300*11*18 | 121 |
| 200*200*8*12 | 50.5 | 450*200*9*14 | 76.5 | 200*200*8*12 | 49.9 | 446*199*8*12 | 65.1 |
| 200*204*12*12 | 56.7 | 482*300*11*15 | 115 | 200*204*12*12 | 56.2 | 450*200*9*14 | 74.9 |
| 244*175*7*11 | 44.1 | 488*300*11*18 | 129 | 244*175*7*11 | 43.6 | 482*300*11*15 | 111 |
| 248*124*5*8 | 25.8 | 496*199*9*14 | 79.5 | 248*124*5*8 | 25.1 | 488*300*11*18 | 125 |
| 250*125*6*9 | 29.7 | 500*200*10*16 | 89.6 | 250*125*6*9 | 29 | 496*199*9*14 | 77.9 |
| 250*250*9*14 | 72.4 | 506*201*11*19 | 103 | 250*250*9*14 | 71.8 | 500*200*10*16 | 88.2 |
| 250*255*14*14 | 82.2 | 582*300*12*17 | 137 | 250*255*14*14 | 81.6 | 506*201*11*19 | 102 |
| 294*200*8*12 | 57.3 | 588*300*12*20 | 151 | 294*200*8*12 | 55.8 | 582*300*12*17 | 133 |
| 294*302*12*12 | 85 | 594*302*14*23 | 175 | 294*302*12*12 | 83.4 | 588*300*12*20 | 147 |
| 298*149*5.5*8 | 32.6 | 596*199*10*15 | 95.1 | 298*149*5.5*8 | 32 | 594*302*14*23 | 170 |
| 298*201*9*14 | 65.4 | 600*200*11*17 | 106 | 300*150*6.5*9 | 36.7 | 596*199*10*15 | 92.5 |
| 300*150*6.5*9 | 37.3 | 606*201*12*20 | 120 | 300*300*10*15 | 93 | 600*200*11*17 | 103 |
| 300*300*10*15 | 94.5 | 692*300*13*20 | 166 | 300*305*15*15 | 105 | 606*201*12*20 | 118 |
| 300*305*15*15 | 106 | 700“300*13-24 | 185 | 340*250*9*14 | 78.1 | 692*300*13*20 | 163 |
| 340*250*9*14 | 79.7 | 792*300*14*22 | 191 | 346*174*6*9 | 41.2 | 700*300*13*24 | 182 |
| 346*174*6*9 | 41.8 | 800*300*14*26 | 210 | 350*175*7*11 | 49.4 | 800*300*14*26 | 207 |
| 350*175*7*11 | 50 | 900*300*16*28 | 243 | 350*350*12*19 | 135 | ||
| 350*350*12*19 | 137 | ||||||
Production Flow Chart
Project Case
Pack And Ship
Certificate
Customer Praise
Plant And Equipment
FAQ
1.What's your advantage?
A: Great products with competitive price and professional service on export business.
2. How I believe you?
A : We consider honesty as the core of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
