H Section Steel Building Steel Structure Hot Rolled Welded Metal I Beam Carbon Steel Profiles S275JR Q235 S355JR I Beam H Beam

Steel Structure

H Section Steel Building Steel Structure Hot Rolled Welded Metal I Beam Carbon Steel Profiles S275JR Q235 S355JR I Beam H Beam

name Steel structure
Steel column
Q235,355B welded square tube column/Box column
Steel beam
Q235,355B welded H section steel/hot-rolled H section steel
Steel purlin
C/Z section purlin or square tube column
Gutter
Stainless steel gutter/UPVC gutter
    微信图片_20250508144841

    Item Materials Remark
    Steel Frame 1 H section column and beam Q345 steel, paint or galvanization
    2 wind resistant column Q345 steel,paint or galvanization
    3 Roof purline Q235B C/Z section galvanized steel
    4 Wall purline Q235B C/Z section galvanized steel
    Supporting system 1 Tie bar Q235 round steel pipe
    2 knee brace angle steel  L50*4,Q235
    3 roof horizontal bracing φ20,Q235B steel bar, paint or galvanized
    4 column vertical bracing φ20,Q235B steel bar, paint or galvanized
    5 purline brace Φ12 round bar Q235
    6 knee brace angle steel, L50*4,Q235
    7 casing pipe φ32*2.0,Q235 steel pipe
    8 gable angle steel M24 Q235B
    Roof and wall  1 Wall and roof panel corrugated steel sheet/sandwich panel
    protecting system 2 self tapping screw
      3 Ridge tile color steel sheet
      4 gutter color steel sheet/galvanized steel/stainless steel
      5 down pipe
      6 corner trim color steel sheet
    Fastener system  1  Anchor bolts Q235 steel
    2 Bolts
    3 Nuts

    Our advantages:
    1. High quality, strong, durability and stability, aesthetic  2.Modularization-specific design 3.Fast and easy erection and installation 4.Cheaper, lower maintenance cost than any other construction method 5.Good waterproof and flameproof 6. Longer life than other identical products 7. Environmentally friendly, steel and components can be re-used without effecting the environment 8. Uniform quality 9.Economy in transportation and handling 10. After sales: professional installation team. 11. Can provide integrated engineering

    微信图片_20250508144119
    Advantages of the steel structure for workshop

    Light weight, industrialized manufcture, convenient for shipment and transportation
    High strength, wide span
    corrosion resistance, heat-insulation
    Highly secure and reliable.
    fast installation, shorter construction time
    Easy and fast to build, low cost
    Resistant to 8-9 earthquake grades.
    Span life: Up to 50 years.The steel structure materials can be recycled, thanks to this the building is environmental friendly.

    微信图片_20250508144125

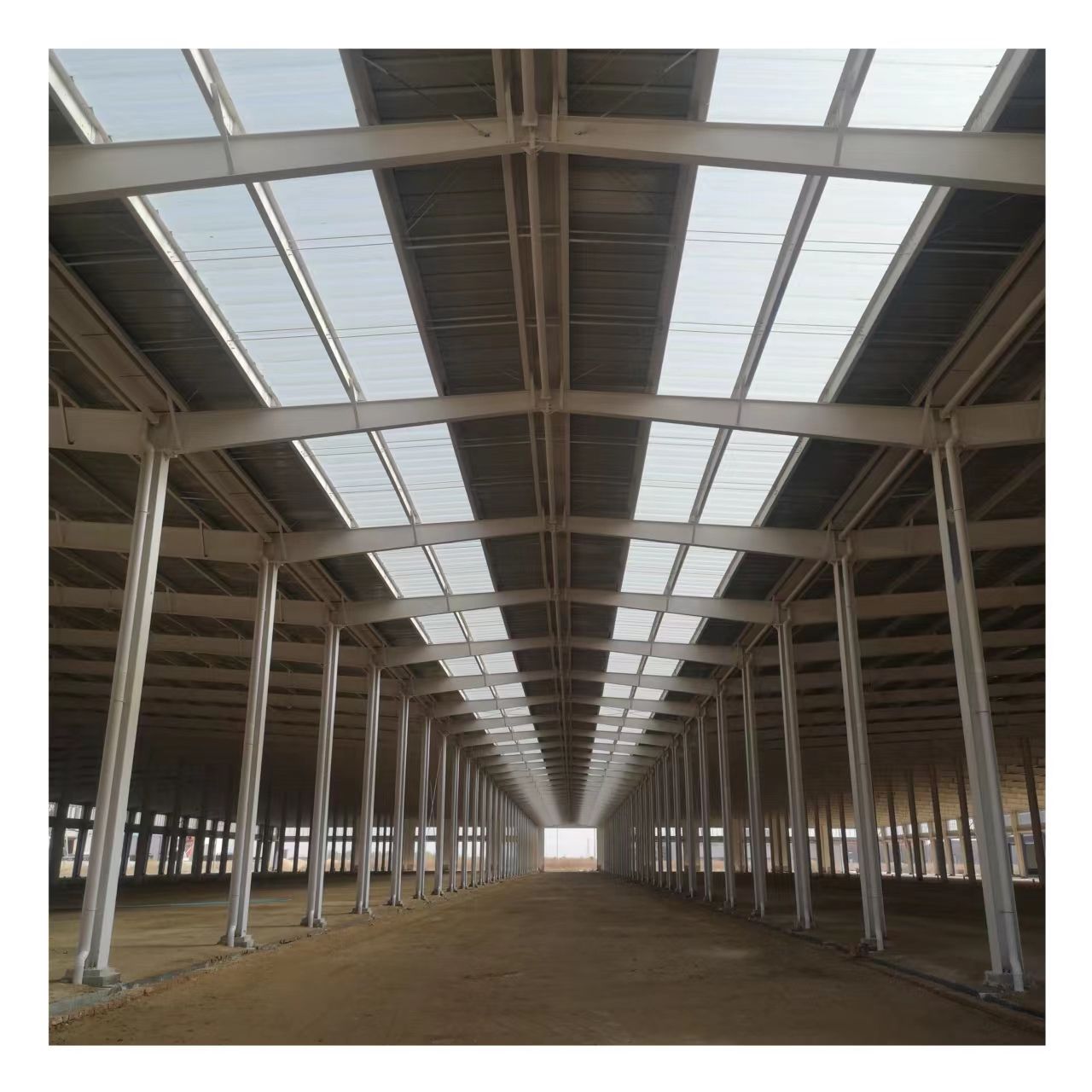

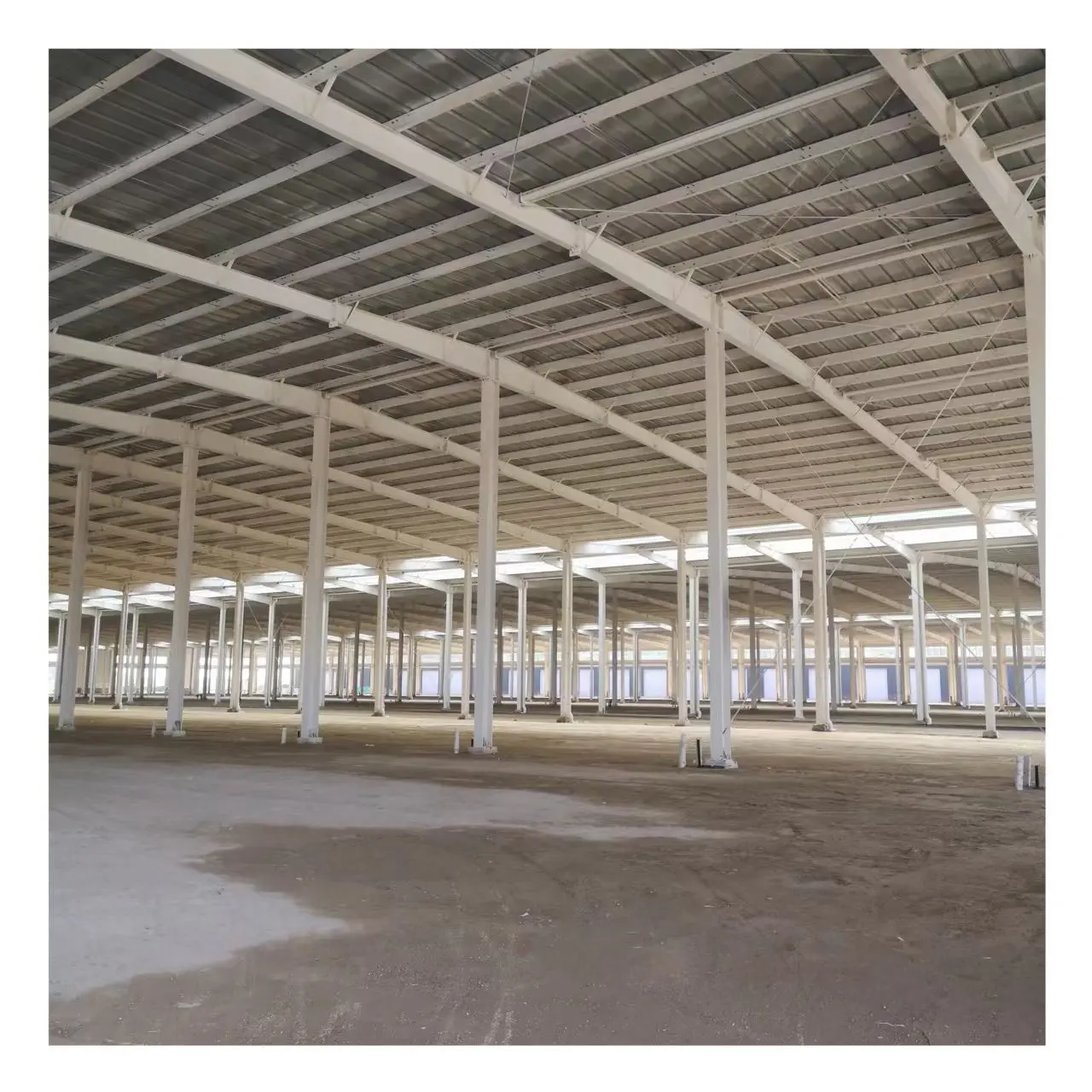

    Steel Structure Warehouse Short Introduce:

    Steel structure plant mainly refers to the main load-bearing components are composed of steel. Including steel pillars, steel beams, steel structure foundation, steel roof frame, steel roofing sheet.
    Steel walls can also be enclosed with brick walls.

    Steel structure factory features:
    1: steel structure construction of light quality, high strength, large span.
    2: steel structure construction period is short, corresponding to reduce the investment cost.
    3: steel structure building is easy to move, recycling and pollution-free.
    6

    微信图片_2025050814400289

    1. who are we? We are based in Hebei, China, 2. how can we guarantee quality? Always a pre-production sample before mass production;Always final Inspection before shipment; 3. why should you buy from us not from other suppliers? Our factory is equipped with professional production plants and processing equipment in Tianjin, enabling us to efficiently organize production according to customer requirements. Additionally, we offer convenient transportation conditions. 4. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; 5.Language:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
