U Channel

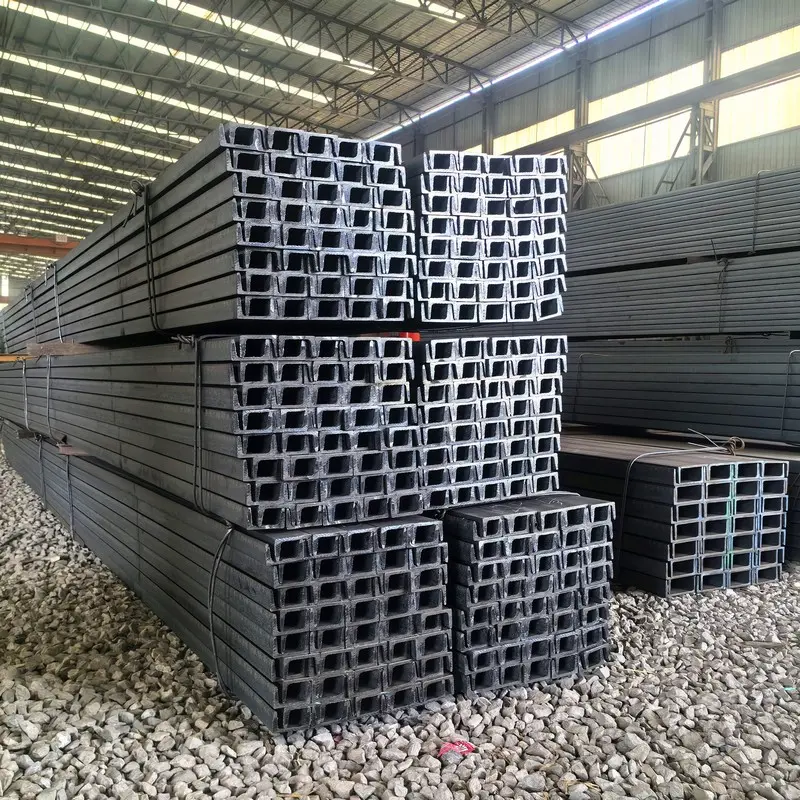

Factory Supply Steel U Channel Metal Channel For Construction
1.U channel are widely used for beam and column members of steel structures in industrial and civil buildings. Frame structures for shipbuilding and machine building. steel piles and support structures.

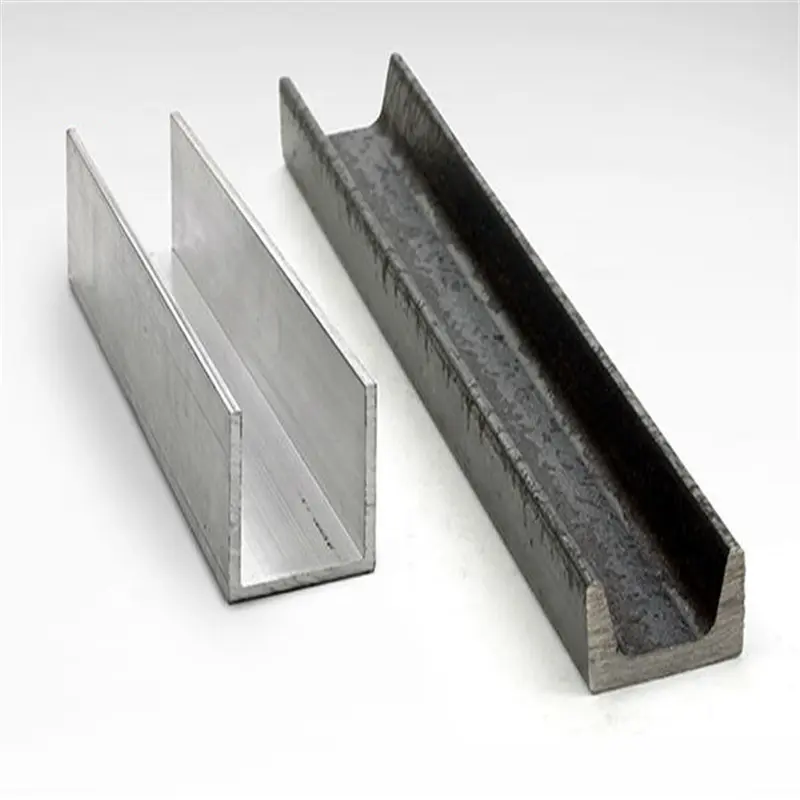

2.Channel steel is a long strip of steel with a groove-shaped cross-section. It is a carbon structural steel used in construction and machinery. It is a profile steel with a complex cross-section and has a groove-shaped cross-section. Channel steel is mainly used in building structures, curtain wall engineering, mechanical equipment and vehicle manufacturing.
3.As the main load-bearing components of building structures, such as beams, columns, frames, etc.,U channel steel bears the effects of bending, shearing and axial forces.As parts and components of mechanical equipment, such as cranes, excavators, forklifts, etc., transmit force and motion.
| Material | Q235B/Q355B/SS400 |
| Tolerance | ±1% |
| Model | 5#-40# |
| Processing services | Cutting/Welding/Bending |
| Shipping date | 15-21days |
| Price terms | FOB/CFR/CIF/EXW/ETC |
| Technique | Hot rolled |
| Package | Standard Sea-worthy Packing |
Product Parameters
| Theoretical weight kg/m | Leg height | Waist depth | |
| 6.3 | 6.634 | 40 | 4.8 |
| 8 | 8.045 | 43 | 5.0 |
| 10 | 10.007 | 48 | 5.3 |
| 12 | 12.059 | 53 | 5.5 |
| 14a | 14.535 | 58 | 6.0 |
| 14b | 16.733 | 60 | 8.0 |
| 16a | 17.24 | 63 | 6.5 |
| 16b | 19.752 | 65 | 8.5 |
| 18a | 20.174 | 68 | 7.0 |
| 18b | 23.000 | 70 | 9.0 |
| 20a | 22.637 | 73 | 7.0 |
| 20b | 25.777 | 75 | 9.0 |
| 22a | 24.999 | 77 | 7.0 |
| 22b | 28.453 | 79 | 9.0 |
| 25a | 27.41 | 78 | 7.0 |
| 25b | 31.335 | 80 | 9.0 |
| 28a | 31.427 | 82 | 7.5 |
| 28b | 35.823 | 84 | 9.5 |
| 28c | 40.219 | 86 | 11.5 |
| 30a | 34.463 | 85 | 7.5 |
| 30b | 39.173 | 87 | 9.5 |
| 32a | 38.083 | 88 | 8.0 |
| 32b | 43.107 | 90 | 10.0 |
| 36a | 47.814 | 96 | 9.0 |
| 36b | 53.466 | 98 | 11.0 |
| 40a | 58.928 | 100 | 10.5 |
| 40b | 65.208 | 102 | 12.5 |
