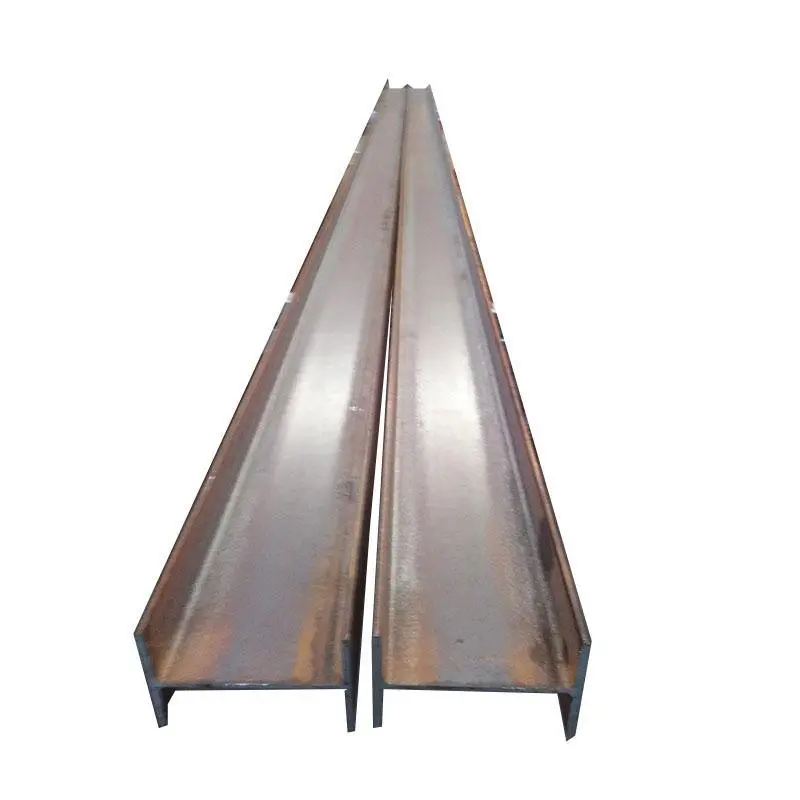

I beam/IPE/IPEAA/IPEAAAA

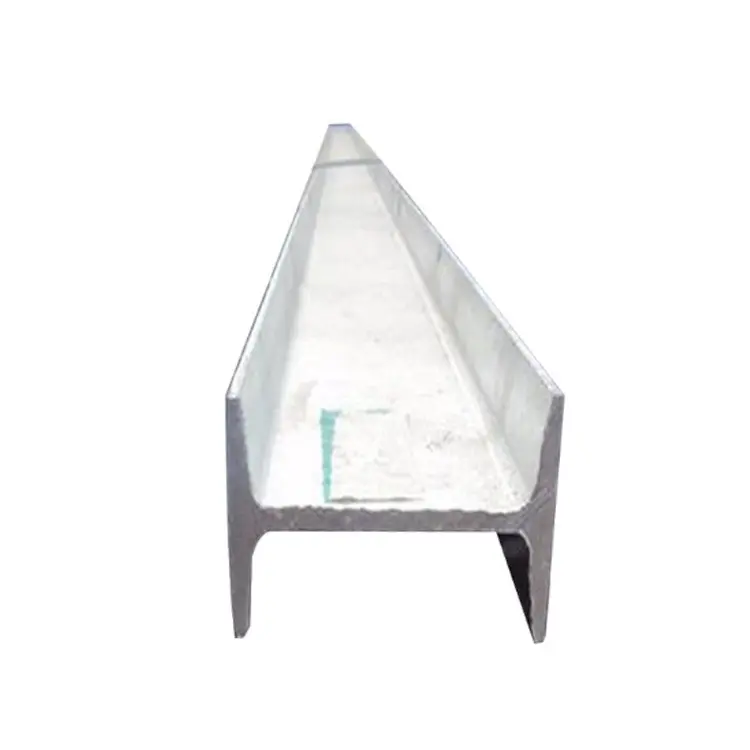

Hot Rolled Galvanized Steel I Beam I Metal Beam
Product Parameters
| I beam | |||||||
| Model | High waist | Waist thickness | Theoretical heavy | Model | High waist | Waist thickness | Theoretical heavy |
| 10 | 68 | 4.5 | 11.261 | 32C | 134 | 13.5 | 62.765 |
| 12 | 74 | 5 | 13.987 | 36A | 136 | 10 | 60.037 |
| 14 | 80 | 5.5 | 16.89 | 36B | 138 | 12 | 65.689 |
| 16 | 88 | 6 | 20.513 | 36C | 140 | 14 | 71.341 |
| 18 | 94 | 6.5 | 24.143 | 40A | 142 | 10 | 67.598 |
| 20A | 100 | 7 | 27.929 | 40B | 144 | 12.5 | 73.874 |
| 20B | 102 | 9 | 31.069 | 40C | 146 | 14.5 | 80.158 |
| 22A | 110 | 7.5 | 33.07 | 45A | 150 | 11.5 | 80.42 |
| 22B | 112 | 9.5 | 36.524 | 45B | 152 | 13.5 | 87.485 |
| 25A | 116 | 8 | 38.105 | 45C | 154 | 15.5 | 94.55 |
| 25B | 118 | 10 | 42.03 | 56A | 166 | 12.5 | 106.316 |
| 28A | 122 | 8.5 | 43.492 | 56B | 168 | 14.5 | 115.108 |
| 28B | 124 | 10.5 | 47.888 | 56C | 170 | 16.5 | 123.9 |
| 30A | 126 | 9 | 48.084 | 63A | 176 | 13 | 121.407 |
| 30B | 128 | 11 | 52.717 | 63B | 178 | 15 | 131.298 |
| 30C | 130 | 13 | 57.741 | 63C | 180 | 17 | 141.189 |
| 32A | 130 | 9.5 | 52.717 | 30T | 128 | 12 | 64.6 |
| 32B | 132 | 11.5 | 52.741 | 8 | 50 | 4 | 7.52 |
Product Description
H-beam is mainly divided into ordinary H-steel, light H-steel and wide flange H-steel. According to the height ratio of flange and web, it is divided into wide, medium and narrow wide flange H-beams. The specifications of the first two are 10-60, that is, the corresponding height is 10 cm-60 cm. At the same height, the light H-beam flange is narrow, the web is thin, and the weight is light. Wide flange H-beams, also known as H-beams, are characterized by parallel legs and no inclination inside legs. It belongs to the economic section steel, is rolled on the four-high universal mill, so it is also called "universal H-steel". Ordinary H-beams and light I-beams have formed national standards.
2.I-beams can be used as the main structure of bridges, the supporting structures of factories and warehouses, the components of machinery and equipment, and so on. I-beam is a high-strength, corrosion-resistant, and lightweight lightweight steel.
3.The H-beam can be designed strongly, and is easy to cut and weld, and the length of the I-beam can be adjusted according to your own needs, and the H-beam is resistant to aging and has a long service life. Its raw material is mainly steel, which has high impact resistance, wear resistance and long service life.
Product Parameters
| GB H beam | JIS H beam | ||||||
| SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m |
| 100*100*6*8 | 17.2 | 390*300*10*16 | 107 | 100*100*6*8 | 16.9 | 388*402*15*15 | 140 |
| 125'125*6.5*9 | 23.8 | 396*199*7*11 | 56.7 | 125*125*6.5*9 | 23.6 | 390*300*10*16 | 105 |
| 150*75*5*7 | 14.3 | 400*150*8*13 | 55.8 | 150*75*5*7 | 14 | 396*199*7*11 | 56.1 |
| 148*100*6*9 | 21.4 | 400*200*8*13 | 66 | 148*100*6*9 | 20.7 | 400*200*8*13 | 65.4 |
| 150*150*7*10 | 31.9 | 400*400*13*21 | 172 | 150*150*7*10 | 31.1 | 400*150*8*13 | 55.2 |
| 175*90*5*8 | 18.2 | 400*408*21*21 | 197 | 175*90*5*8 | 18 | 400*400*13*21 | 172 |
| 175*175*7.5*11 | 40.4 | 414*405*18*28 | 233 | 175*175*7.5*11 | 40.4 | 400*408*21*21 | 197 |
| 194*150*6*9 | 31.2 | 428*407*20*35 | 284 | 194*150*6*9 | 29.9 | 414*405*18*28 | 232 |
| 198*99*4.5*7 | 18.5 | 440*300*11*18 | 124 | 198*99*4.5*7 | 17.8 | 428*407*20*35 | 283 |
| 200*100*5.5*8 | 21.7 | 446*199*8*12 | 65.5 | 200*100*5.5*8 | 20.9 | 440*300*11*18 | 121 |
| 200*200*8*12 | 50.5 | 450*200*9*14 | 76.5 | 200*200*8*12 | 49.9 | 446*199*8*12 | 65.1 |
| 200*204*12*12 | 56.7 | 482*300*11*15 | 115 | 200*204*12*12 | 56.2 | 450*200*9*14 | 74.9 |
| 244*175*7*11 | 44.1 | 488*300*11*18 | 129 | 244*175*7*11 | 43.6 | 482*300*11*15 | 111 |
| 248*124*5*8 | 25.8 | 496*199*9*14 | 79.5 | 248*124*5*8 | 25.1 | 488*300*11*18 | 125 |
| 250*125*6*9 | 29.7 | 500*200*10*16 | 89.6 | 250*125*6*9 | 29 | 496*199*9*14 | 77.9 |
| 250*250*9*14 | 72.4 | 506*201*11*19 | 103 | 250*250*9*14 | 71.8 | 500*200*10*16 | 88.2 |
| 250*255*14*14 | 82.2 | 582*300*12*17 | 137 | 250*255*14*14 | 81.6 | 506*201*11*19 | 102 |
| 294*200*8*12 | 57.3 | 588*300*12*20 | 151 | 294*200*8*12 | 55.8 | 582*300*12*17 | 133 |
| 294*302*12*12 | 85 | 594*302*14*23 | 175 | 294*302*12*12 | 83.4 | 588*300*12*20 | 147 |
| 298*149*5.5*8 | 32.6 | 596*199*10*15 | 95.1 | 298*149*5.5*8 | 32 | 594*302*14*23 | 170 |
| 298*201*9*14 | 65.4 | 600*200*11*17 | 106 | 300*150*6.5*9 | 36.7 | 596*199*10*15 | 92.5 |
| 300*150*6.5*9 | 37.3 | 606*201*12*20 | 120 | 300*300*10*15 | 93 | 600*200*11*17 | 103 |
| 300*300*10*15 | 94.5 | 692*300*13*20 | 166 | 300*305*15*15 | 105 | 606*201*12*20 | 118 |
| 300*305*15*15 | 106 | 700“300*13-24 | 185 | 340*250*9*14 | 78.1 | 692*300*13*20 | 163 |
| 340*250*9*14 | 79.7 | 792*300*14*22 | 191 | 346*174*6*9 | 41.2 | 700*300*13*24 | 182 |
| 346*174*6*9 | 41.8 | 800*300*14*26 | 210 | 350*175*7*11 | 49.4 | 800*300*14*26 | 207 |
| 350*175*7*11 | 50 | 900*300*16*28 | 243 | 350*350*12*19 | 135 | ||
| 350*350*12*19 | 137 | ||||||
Production Flow Chart
Project Case
Pack And Ship
Service Process
Making rich experience and good reputation as the backup, we will go on supplying high quality products and the best service. We sincerely cooperate with you for better future!
Certificate
Customer Praise
Plant And Equipment
We have advanced production equipment and a professional technical team. From raw material procurement to product production and global sales, we have achieved seamless full-process management.
FAQ
Q: Can you send samples?
A: Of course, we can send samples to all over the world, our samples are free, but customers need to afford the express cost.
Q: What product information do I need to provide?
A: You need to provide the grade, size and quantity you need to purchase.
Q: What shipping ports are there?
A: Generally, we ship from Shanghai, Tianjin, Qingdao ports, and other ports can also be selected according to your needs.
Q: About the product price?
A: Due to the cyclical changes in raw material prices, prices vary in different periods.
Q: What certifications do your products have?
A: We have ISO 9001, SGS, CE and other certifications.
Q: How do you ship the goods and how long does it take to arrive?
A: Samples are usually shipped by DHL, UPS, FedEx or TNT. Airline and sea transportation are also optional, we will provide you with the fastest transportation plan according to the situation.
Q: Can I visit your factory?
A: Of course, we welcome customers from all over the world to visit our factory.
Q:Is there any quality inspection before product loading?
A: Of course, all of our products have been strictly inspected for quality before packaging, and unqualified products will be
destroyed.
Q: How is the product packaged?
A: The inner layer has waterproof paper and the outer layer has iron packaging, and it is fixed with fumigated wooden pallets. it can Effectively protect products from corrosion during ocean transportation. Of course, we can also customize special packaging according to your requirements.
