C/Z/U/ Steel

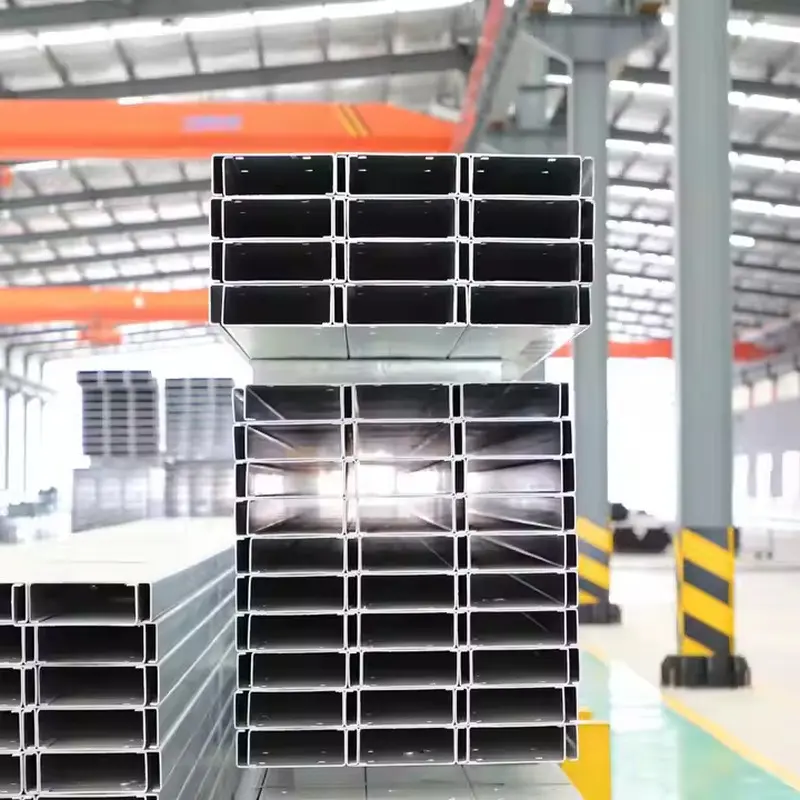

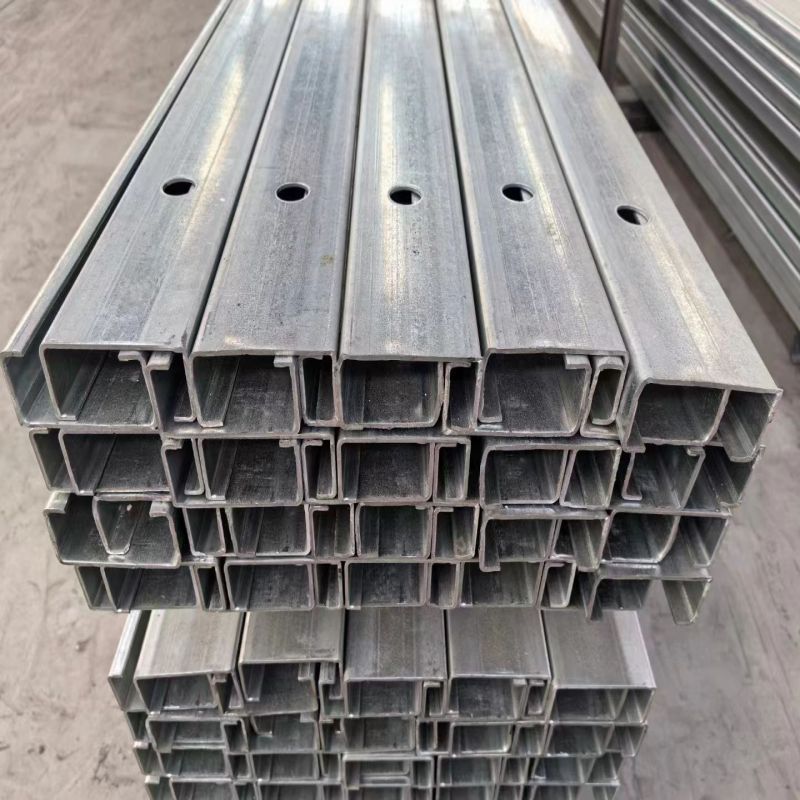

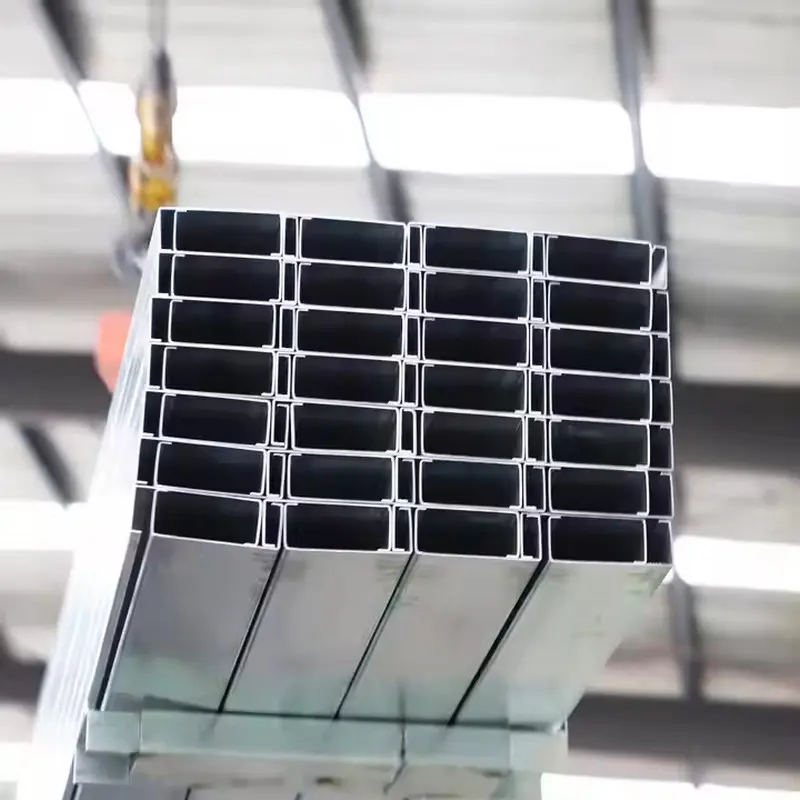

Hot Rolled GB Standard Galvanized C Channel Metal C Steel C purlin
1.We produce C-shaped channel steel and U-shaped channel steel in carbon steel, galvanized, stainless steel and other materials.
2.C-beams are automatically processed and formed by C-beam forming machines. The C-beam forming machine can automatically complete the forming process of the C-beam according to the given C-beam size.
3.Galvanized C-beam, hot-dip galvanized cable tray C-beam, glass card groove C-beam, glass curtain wall C-beam, wiring duct C-beam, Reinforced C-beam, double-hugging C-beam, unilateral C-beam, manual forklift C-beam, unequal C-beam, straight edge C-beam, hypotenuse C-beam, inner coiled edge C-beam.
C-type groove can be divided into galvanized C-type steel, hot-dip galvanized cable bridge C-type steel, glass slot C-type steel, glass curtain wall C-type steel, cable trough C-type steel, reinforced C-type steel, double-hold C-type steel, single-side C-type steel, manual forklift C-type steel, Non-equilateral C steel, straight edge C steel, beveled C steel, inner wound C steel, inner beveled C steel, roof (wall) purlin C steel, automobile profile C steel, highway column C steel, solar support C steel (21-80 series), formwork support C steel, precision C steel for equipment and so on.| Material | Q195/DX51D GALVANIZED STEEL/Alu zinc |
| Tolerance | ±5% |
| Product name | C section steel |
| Processing services | Cutting/Welding/Bending |
| Shipping date | 15-21days |
| Price terms | FOB/CFR/CIF/EXW/ETC |
| Thickness | 0.56-1.2mm |
| Package | Standard Sea-worthy Packing |
Product Parameters
| Type | dimension | kg/m |
| 5# | 50*37*4.5 | 5.438 |
| 6.3# | 63*40*4.8 | 6.634 |
| 8# | 80*43*5.0 | 8.045 |
| 10# | 100*48*5.3 | 10.007 |
| 12# | 120*53*5.5 | 12.059 |
| 14#A | 140*58*6.0 | 14.535 |
| 14#B | 140*60*8.0 | 16.733 |
| 16#A | 160*63*6.5 | 17.24 |
| 16#B | 160*65*8.5 | 19.752 |
| 18#A | 180*68*7.0 | 20.174 |
| 18#B | 180*70*9.0 | 23 |
| 20#A | 200*73*7.0 | 22.337 |
| 20#B | 200*75*9.0 | 25.777 |
| 22#A | 220*77*7.0 | 24.999 |
| 22#B | 220*79*9.0 | 28.453 |
| 25#A | 250*78*7.0 | 27.41 |
| 25#B | 250*80*9.0 | 31.335 |
| 25#C | 250*82*11.0 | 35.26 |
| 28#A | 280*82*7.5 | 31.427 |
| 28#B | 280*84*9.5 | 35.823 |
| 28#C | 280*86*11.5 | 40.219 |
| 30#A | 300*85*7.5 | 34.463 |
| 30#B | 300*87*9.5 | 39.173 |
| 30#C | 300*89*11.5 | 43.883 |
| 32#A | 320*88*8.0 | 38.083 |
| 32#B | 320*90*10.0 | 43.107 |
| 32号C | 320*92*12.0 | 48.131 |
| 36#A | 360*96*9.0 | 47.814 |
| 36#B | 360*98*11.0 | 53.466 |
| 36#C | 360*100*13.0 | 59.118 |
| 40#A | 400*100*10.5 | 58.928 |
| 40#B | 400*102*12.5 | 65.204 |
| 40#C | 400*104*14.5 | 71.488 |
Production Flow Chart
Project Case
Pack And Ship
Certificate
Customer Praise
Plant And Equipment
FAQ
Q: Can you send samples?
A: Of course, we can send samples to all over the world, our samples are free, but customers need to afford the express cost.
Q: What product information do I need to provide?
A: You need to provide the grade, size and quantity you need to purchase.
Q: What shipping ports are there?
A: Generally, we ship from Shanghai, Tianjin, Qingdao ports, and other ports can also be selected according to your needs.
Q: About the product price?
A: Due to the cyclical changes in raw material prices, prices vary in different periods.
Q: What certifications do your products have?
A: We have ISO 9001, SGS, CE and other certifications.
Q: How do you ship the goods and how long does it take to arrive?
A: Samples are usually shipped by DHL, UPS, FedEx or TNT. Airline and sea transportation are also optional, we will provide you with the fastest transportation plan according to the situation.
Q: Can I visit your factory?
A: Of course, we welcome customers from all over the world to visit our factory.
Q:Is there any quality inspection before product loading?
A: Of course, all of our products have been strictly inspected for quality before packaging, and unqualified products will be
destroyed.
Q: How is the product packaged?
A: The inner layer has waterproof paper and the outer layer has iron packaging, and it is fixed with fumigated wooden pallets. it can Effectively protect products from corrosion during ocean transportation. Of course, we can also customize special packaging according to your requirements.
