Angle Steel

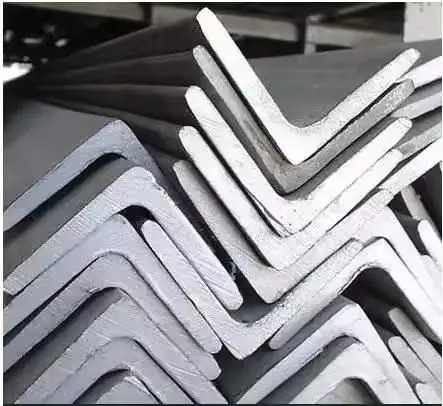

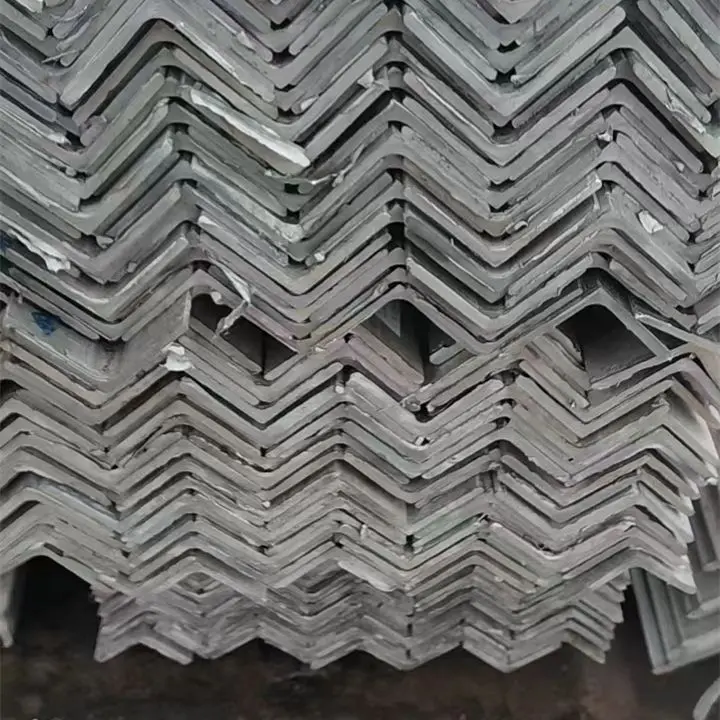

Hot Rolled Mild Equal Q235 Angle Steel Bar Prime Quality Angel Iron Steel
Hot Rolled Mild Equal Q235 Angle Steel Bar Prime Quality Angel Iron Steel
Product Description
The angle steel is angular and the structure gives it good supporting strength. With the same support strength, the angle steel is lighter, consumes less material, and costs less.
It is mainly divided into two categories: equilateral angle steel and unequal angle steel, of which unequal angle steel can be divided into two types: unequal equal thickness and unequal equal thickness.
The size of the angle steel is expressed by the dimensions of the side length and the edge thickness. At present, the specifications of domestic angle steel are 2-20, and the number of centimeters of side length is the number, and the same angle steel often has 2-7 different side thicknesses. The imported angle steel is marked with the actual size and edge thickness on both sides and the relevant standards are indicated. Generally, the side length of more than 12.5cm is a large angle steel, the one between 12.5cm and 5cm is a medium-sized angle steel, and the side length is less than 5cm is a small angle steel.
The order of import and export angle steel is generally based on the specifications required in use, and the steel number is the corresponding carbon junction steel number. It is also an angle steel that does not have a specific composition and performance series except for the specification number. The delivery length of angle steel is divided into two kinds of fixed length and double ruler, and the selection range of domestic angle steel is 3-9m, 4-12m, 4-19m and 6-19m according to the different specifications. The length of angle steel made in Japan is selected from 6 to 15 m.
The cross-sectional height of the unequal angle is calculated according to the length and width of the unequal angle. Refers to steel with an angular cross-section and unequal lengths on both sides. It is one of the angle steels. Its side length is from 25mm×16mm~200mm×l25mm. It is rolled by a hot rolling mill. The general unequal angle steel specifications are: ∠50*32--∠200*125 with a thickness of 4-18mm
Unequal angle steel is widely used in various metal structures, bridges, machinery manufacturing and shipbuilding industries, various building structures and engineering structures, such as house beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouses
It is mainly divided into two categories: equilateral angle steel and unequal angle steel, of which unequal angle steel can be divided into two types: unequal equal thickness and unequal equal thickness.
The size of the angle steel is expressed by the dimensions of the side length and the edge thickness. At present, the specifications of domestic angle steel are 2-20, and the number of centimeters of side length is the number, and the same angle steel often has 2-7 different side thicknesses. The imported angle steel is marked with the actual size and edge thickness on both sides and the relevant standards are indicated. Generally, the side length of more than 12.5cm is a large angle steel, the one between 12.5cm and 5cm is a medium-sized angle steel, and the side length is less than 5cm is a small angle steel.
The order of import and export angle steel is generally based on the specifications required in use, and the steel number is the corresponding carbon junction steel number. It is also an angle steel that does not have a specific composition and performance series except for the specification number. The delivery length of angle steel is divided into two kinds of fixed length and double ruler, and the selection range of domestic angle steel is 3-9m, 4-12m, 4-19m and 6-19m according to the different specifications. The length of angle steel made in Japan is selected from 6 to 15 m.
The cross-sectional height of the unequal angle is calculated according to the length and width of the unequal angle. Refers to steel with an angular cross-section and unequal lengths on both sides. It is one of the angle steels. Its side length is from 25mm×16mm~200mm×l25mm. It is rolled by a hot rolling mill. The general unequal angle steel specifications are: ∠50*32--∠200*125 with a thickness of 4-18mm
Unequal angle steel is widely used in various metal structures, bridges, machinery manufacturing and shipbuilding industries, various building structures and engineering structures, such as house beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouses
Product Parameters
| equal angle steel | |||||
| (mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
| 25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
| 25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
| 30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
| 30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
| 40*3 | 1.852 | 80*7 | 8.525 | 125*14 | 26.193 |
| 40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
| 40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
| 50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 29.49 |
| 50*5 | 3.77 | 90*7 | 9.658 | 140*16 | 35.393 |
| 50*6 | 4.465 | 90*8 | 10.946 | 160*10 | 24.729 |
| 60*5 | 4.52 | 90*10 | 13.476 | 160*12 | 29.391 |
| 60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
| 63*5 | 4.822 | 100*6 | 9.366 | 160*16 | 38.518 |
| 63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
| 63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
| 63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
| 70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
| 70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
| 70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
| 70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
| 75*5 | 5.818 | 110*10 | 16.69 | 200*20 | 60.056 |
| 75*6 | 6.905 | 110*12 | 19.782 | ||
| Unequal angle steel | |||||
| (mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
| 25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
| 32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
| 32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
| 40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
| 40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 14.1 |
| 45*28*3 | 1.687 | 80*50*8 | 7.745 | 140*90*10 | 17.475 |
| 45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
| 50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
| 50*32*4 | 2.494 | 90*56*8 | 8.779 | 160*100*10 | 19.872 |
| 56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
| 56*36*4 | 2.818 | 100*63*8 | 9.878 | 160*100*16 | 30.853 |
| 56*39*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22.273 |
| 63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
| 63*40*5 | 3.92 | 100*80*7 | 9.656 | 180*110*14 | 30.589 |
| 63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
| 70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
| 70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
| 70*45*7 | 6.011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
| 75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
| 75*50*6 | 5.699 | 110*70*10 | 13.476 | ||
Production Flow Chart
Project Case
Pack And Ship
Service Process
We take quality as the cornerstone and standards as the guide, and are committed to providing customers with the best quality steel products. We firmly believe that only "Made in China" steel shines on the global stage in order to win the trust and support of more customers.
To choose us is to choose a reliable and professional steel trading partner. Let's work hand in hand to create a more brilliant future.
Certificate
Customer Praise
Plant And Equipment
We have advanced production equipment and a professional technical team. From raw material procurement to product production and global sales, we have achieved seamless full-process management.
FAQ
Q: Can you send samples?
A: Of course, we can send samples to all over the world, our samples are free, but customers need to afford the express cost.
Q: What product information do I need to provide?
A: You need to provide the grade, size and quantity you need to purchase.
Q: What shipping ports are there?
A: Generally, we ship from Shanghai, Tianjin, Qingdao ports, and other ports can also be selected according to your needs.
Q: About the product price?
A: Due to the cyclical changes in raw material prices, prices vary in different periods.
Q: What certifications do your products have?
A: We have ISO 9001, SGS, CE and other certifications.
Q: How do you ship the goods and how long does it take to arrive?
A: Samples are usually shipped by DHL, UPS, FedEx or TNT. Airline and sea transportation are also optional, we will provide you with the fastest transportation plan according to the situation.
Q: Can I visit your factory?
A: Of course, we welcome customers from all over the world to visit our factory.
Q:Is there any quality inspection before product loading?
A: Of course, all of our products have been strictly inspected for quality before packaging, and unqualified products will be
destroyed.
Q: How is the product packaged?
A: The inner layer has waterproof paper and the outer layer has iron packaging, and it is fixed with fumigated wooden pallets. it can Effectively protect products from corrosion during ocean transportation. Of course, we can also customize special packaging according to your requirements.
