40*40*3mm Steel Angle Profiles 316 100*100*10mm Stainless Steel Angles for Light Industry

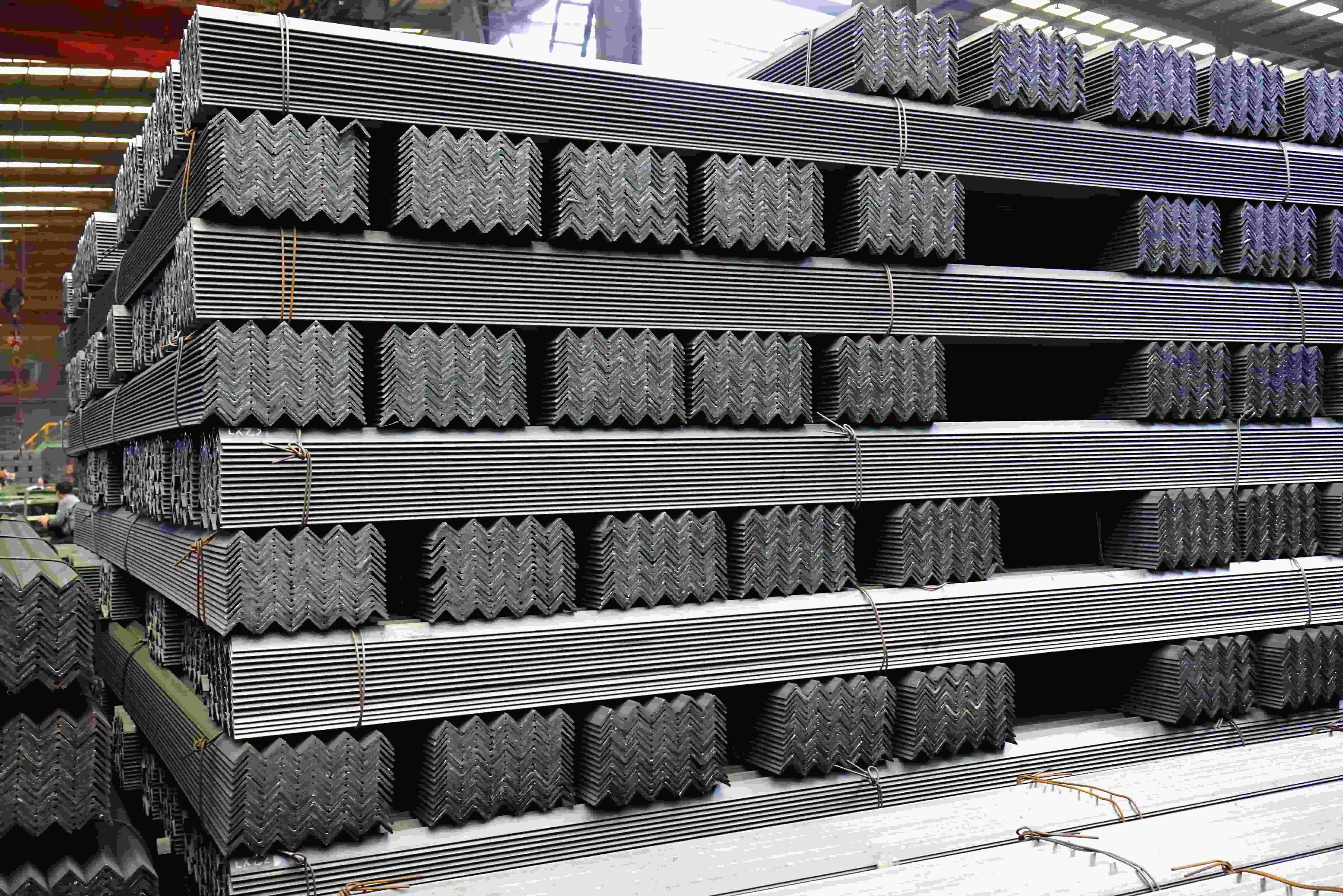

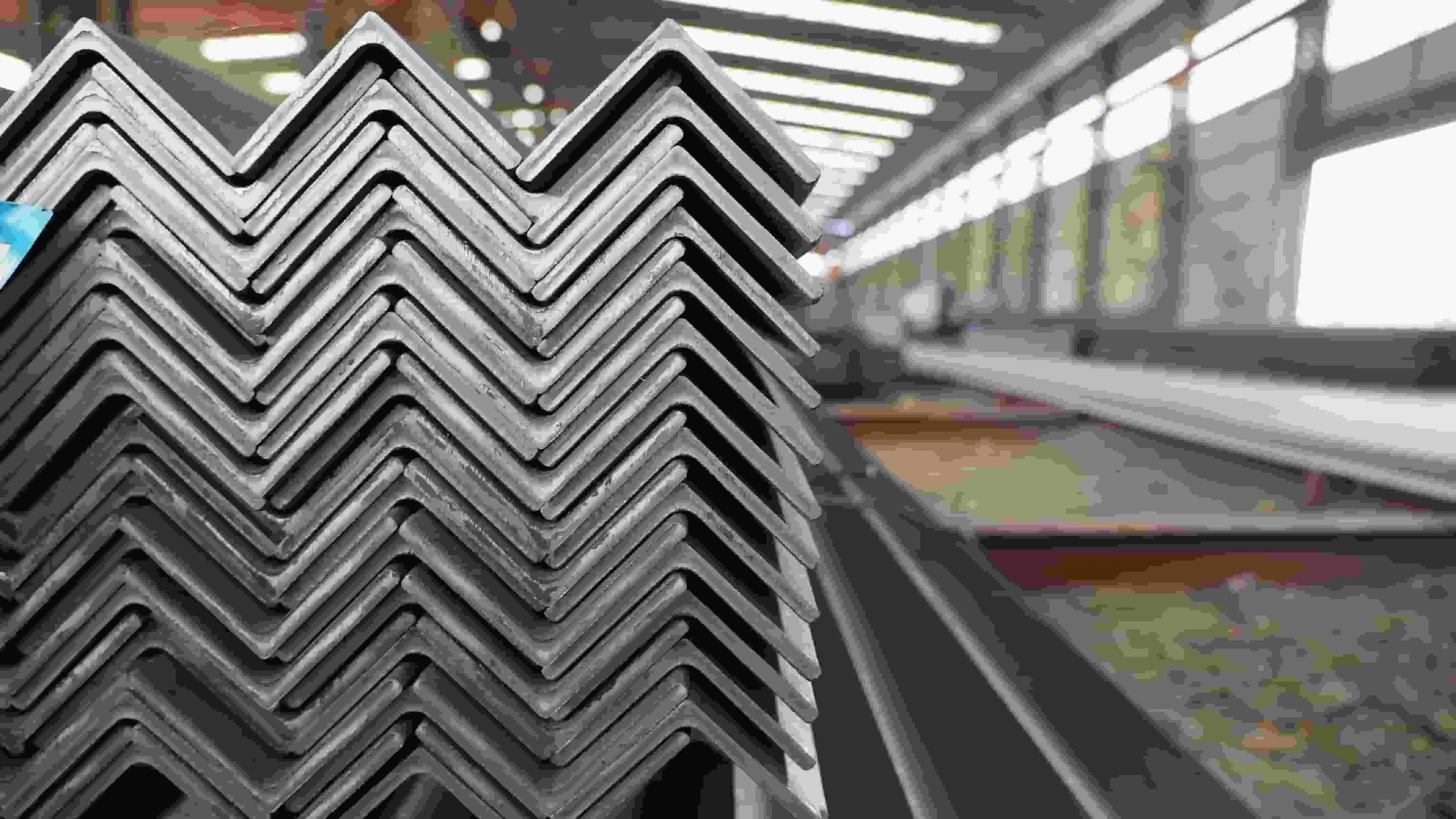

The two sides of an equilateral angle are equal in width. Its specifications are expressed in millimeters of side width× side width × edge thickness. For example, "∠30×3", which means an equilateral angle steel with a side width of 30 mm and a side thickness of 3 mm. It can also be expressed by the model number, which is the number of centimeters of the side width, such as ∠3#. The model does not represent the size of different side thicknesses in the same model, so the side width and side thickness of the angle steel should be filled in on the contract and other documents to avoid being represented by the model alone. The specifications of hot-rolled equilateral angle steel are 2#-20#.

Angle steel can be composed of various different stressed components according to the different needs of the structure, and can also be used as a connector between components. It is widely used in various building structures and engineering structures, such as house beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves.

Angle steel is a carbon structural steel for construction, which is a section steel with a simple section, mainly used for metal components and the frame of the workshop. In use, it is required to have good weldability, plastic deformation performance and certain mechanical strength. The raw material billet for the production of angle steel is a low-carbon square billet, and the finished angle steel is delivered in a hot-rolled formed, normalized or hot-rolled state.
