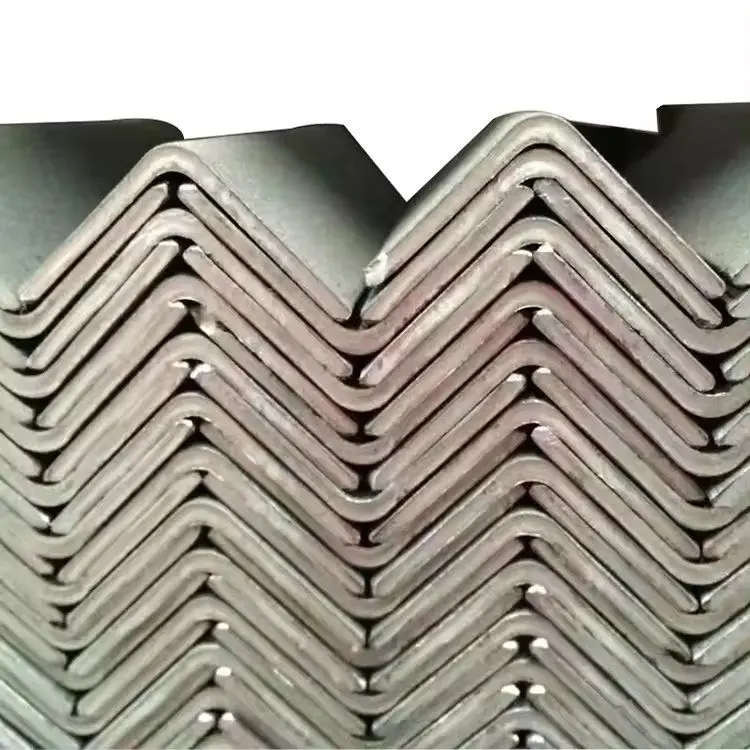

Angle Steel
Angle Steel Hot Dipped Galvanized Equal and Unequal Bar Bending Cutting Punching Welding Services Included
Product Description
The order of import and export angle steel is generally based on the specifications required in use, and the steel number is the corresponding carbon junction steel number. It is also an angle steel that does not have a specific composition and performance series except for the specification number. The delivery length of angle steel is divided into two kinds of fixed length and double ruler, and the selection range of domestic angle steel is 3-9m, 4-12m, 4-19m and 6-19m according to the different specifications. The length of angle steel made in Japan is selected from 6 to 15 m.
Unequal angle steel is widely used in various metal structures, bridges, machinery manufacturing and shipbuilding industries, various building structures and engineering structures, such as house beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouses
The galvanized layer of hot-dip galvanized angle steel is uniform in thickness, up to 30-50um, with good reliability. The galvanized layer is metallurgical bond with steel and becomes a part of the steel surface. Therefore, the coating durability of hot-dip galvanized angle steel is relatively reliable. Hot-dip galvanized angle steel is made of angle steel, so it is classified as angle steel.
Product Parameters
| equal angle steel | |||||
| (mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
| 25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
| 25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
| 30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
| 30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
| 40*3 | 1.852 | 80*7 | 8.525 | 125*14 | 26.193 |
| 40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
| 40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
| 50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 29.49 |
| 50*5 | 3.77 | 90*7 | 9.658 | 140*16 | 35.393 |
| 50*6 | 4.465 | 90*8 | 10.946 | 160*10 | 24.729 |
| 60*5 | 4.52 | 90*10 | 13.476 | 160*12 | 29.391 |
| 60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
| 63*5 | 4.822 | 100*6 | 9.366 | 160*16 | 38.518 |
| 63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
| 63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
| 63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
| 70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
| 70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
| 70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
| 70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
| 75*5 | 5.818 | 110*10 | 16.69 | 200*20 | 60.056 |
| 75*6 | 6.905 | 110*12 | 19.782 | ||
| Unequal angle steel | |||||
| (mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
| 25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
| 32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
| 32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
| 40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
| 40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 14.1 |
| 45*28*3 | 1.687 | 80*50*8 | 7.745 | 140*90*10 | 17.475 |
| 45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
| 50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
| 50*32*4 | 2.494 | 90*56*8 | 8.779 | 160*100*10 | 19.872 |
| 56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
| 56*36*4 | 2.818 | 100*63*8 | 9.878 | 160*100*16 | 30.853 |
| 56*39*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22.273 |
| 63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
| 63*40*5 | 3.92 | 100*80*7 | 9.656 | 180*110*14 | 30.589 |
| 63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
| 70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
| 70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
| 70*45*7 | 6.011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
| 75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
| 75*50*6 | 5.699 | 110*70*10 | 13.476 | ||
Production Flow Chart
Project Case
Pack And Ship
Certificate
Customer Praise
Plant And Equipment
FAQ
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 7-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is: 8:00-22:00, after 22:00, we will reply to your inquiry during
the next working day.
