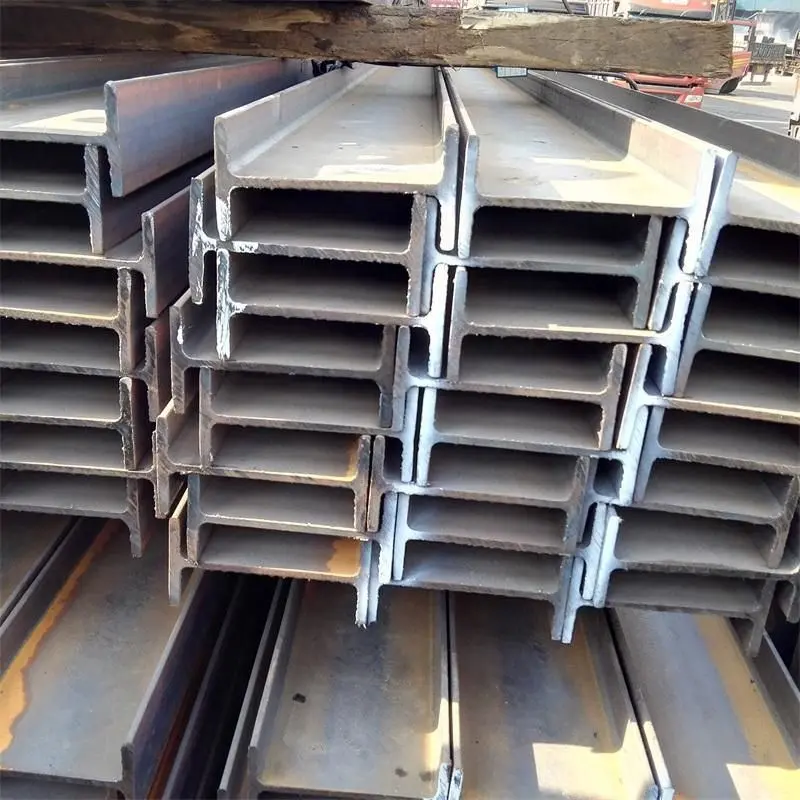

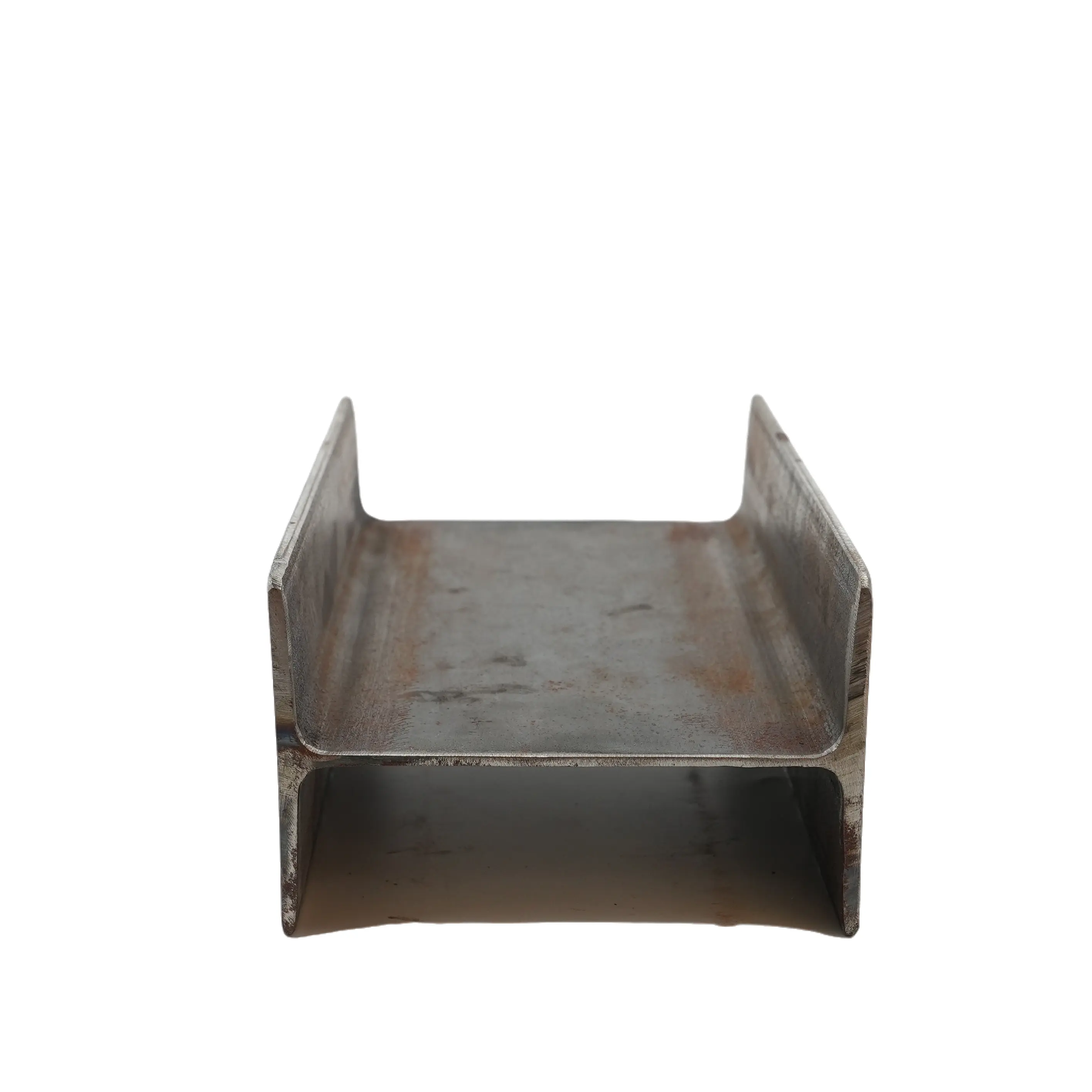

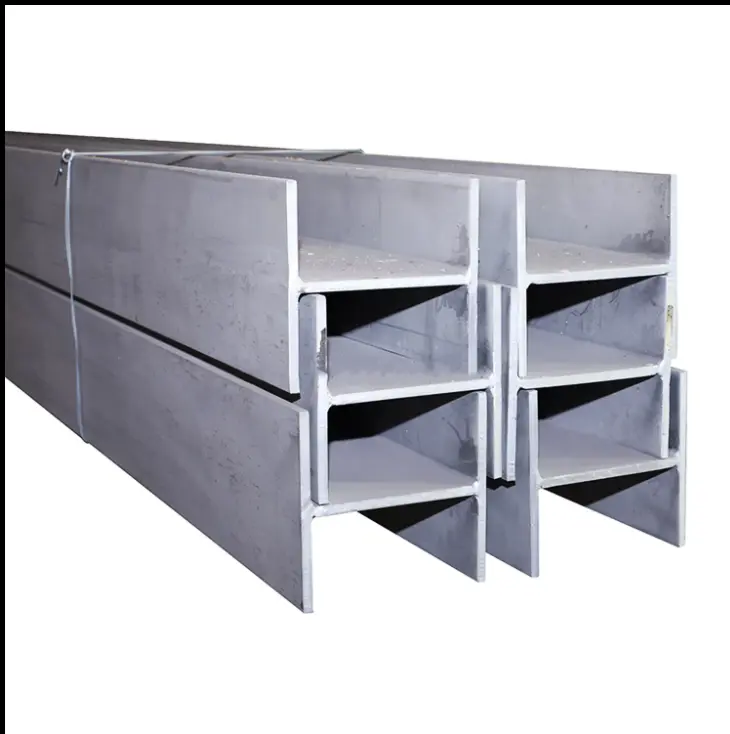

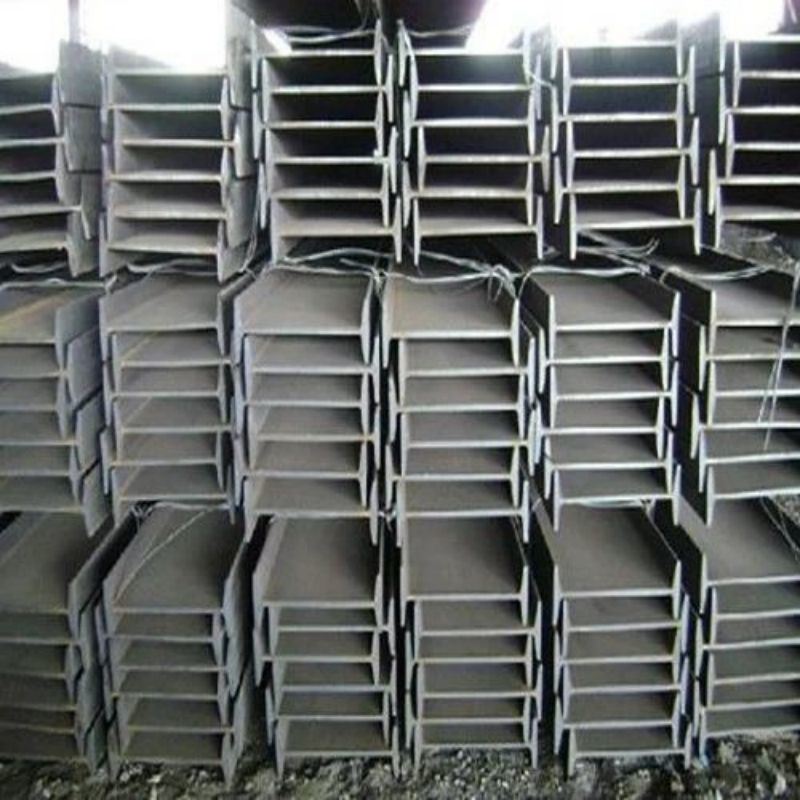

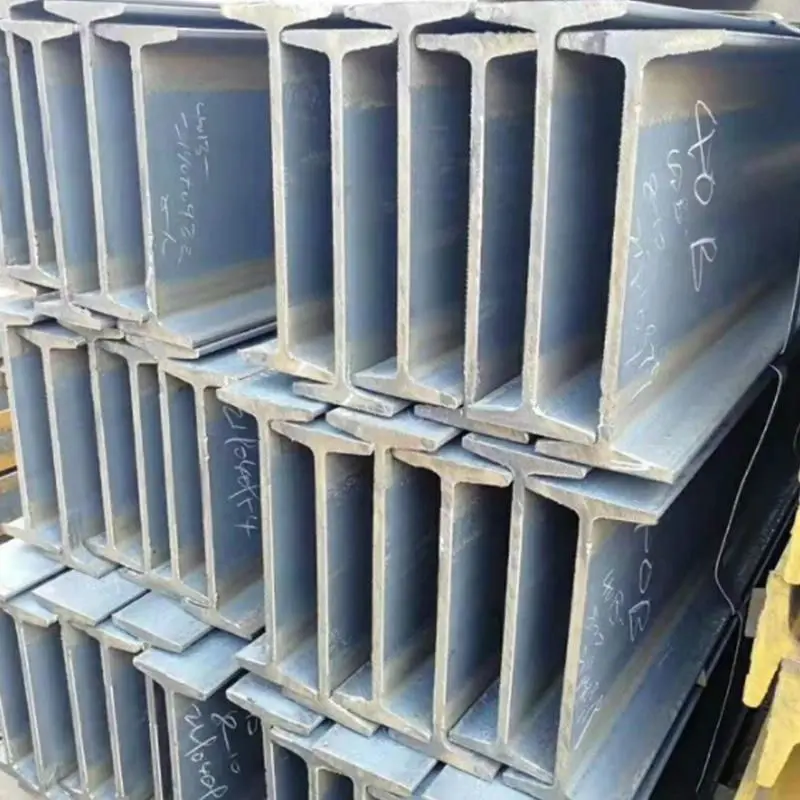

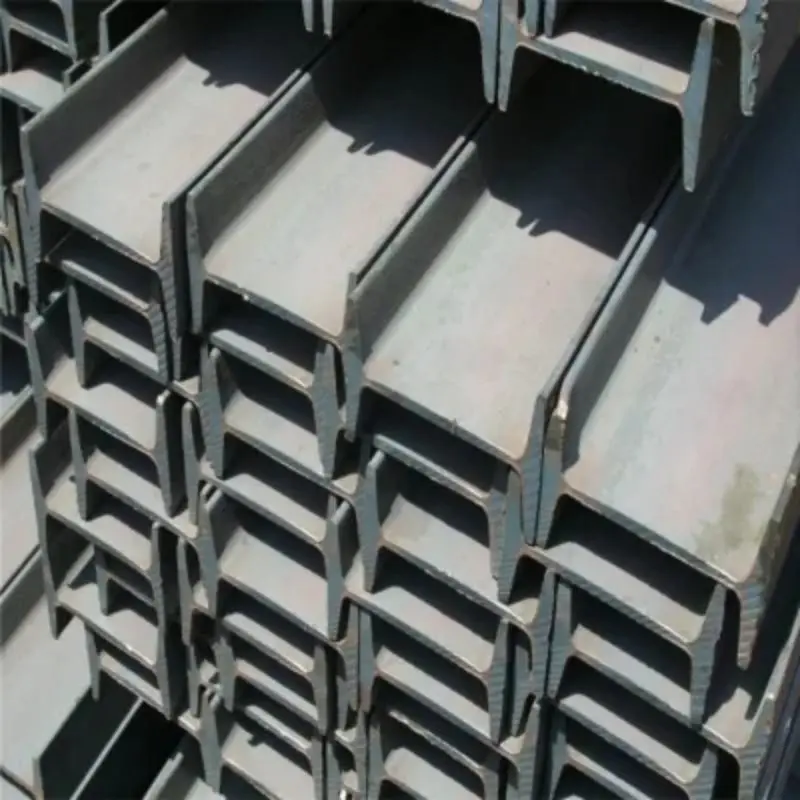

H Beam
Steel H-beams Wide Flange Structural Carbon Steel H Beam Piles Professional Supplier Galvanized Steel I Beam For Sale Galvanized
Product Description
The flanges of H-shaped steel are of equal thickness. There are rolled sections and combined sections composed of three plates welded together. I-shaped steel is a rolled section. Due to poor production technology, the inner edge of the flange has a slope of 1:10. The rolling of H-shaped steel is different from that of ordinary I-shaped steel, which only uses one set of horizontal rollers. Because its flange is wide and has no slope (or the slope is very small), it is necessary to add a set of vertical rollers for rolling at the same time. Therefore, its rolling process and equipment are more complicated than ordinary rolling mills. The maximum height of rolled H-shaped steel that can be produced in China is 800mm. If it exceeds this, it can only be a welded combined section.
my country's national standard for hot-rolled H-shaped steel (GB/T11263-1998) divides H-shaped steel into three categories: narrow flange, wide flange and steel piles, with codes HZ, HK and Hu respectively. Narrow flange H-shaped steel is suitable for beams or compression-bending members, while wide flange H-shaped steel and H-shaped steel piles are suitable for axial compression members or compression-bending members. Compared with H-beam, W, IX and IY are not as good as H-beam under the premise of equal weight.
Product Parameters
| GB H beam | JIS H beam | ||||||
| SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m |
| 100*100*6*8 | 17.2 | 390*300*10*16 | 107 | 100*100*6*8 | 16.9 | 388*402*15*15 | 140 |
| 125'125*6.5*9 | 23.8 | 396*199*7*11 | 56.7 | 125*125*6.5*9 | 23.6 | 390*300*10*16 | 105 |
| 150*75*5*7 | 14.3 | 400*150*8*13 | 55.8 | 150*75*5*7 | 14 | 396*199*7*11 | 56.1 |
| 148*100*6*9 | 21.4 | 400*200*8*13 | 66 | 148*100*6*9 | 20.7 | 400*200*8*13 | 65.4 |
| 150*150*7*10 | 31.9 | 400*400*13*21 | 172 | 150*150*7*10 | 31.1 | 400*150*8*13 | 55.2 |
| 175*90*5*8 | 18.2 | 400*408*21*21 | 197 | 175*90*5*8 | 18 | 400*400*13*21 | 172 |
| 175*175*7.5*11 | 40.4 | 414*405*18*28 | 233 | 175*175*7.5*11 | 40.4 | 400*408*21*21 | 197 |
| 194*150*6*9 | 31.2 | 428*407*20*35 | 284 | 194*150*6*9 | 29.9 | 414*405*18*28 | 232 |
| 198*99*4.5*7 | 18.5 | 440*300*11*18 | 124 | 198*99*4.5*7 | 17.8 | 428*407*20*35 | 283 |
| 200*100*5.5*8 | 21.7 | 446*199*8*12 | 65.5 | 200*100*5.5*8 | 20.9 | 440*300*11*18 | 121 |
| 200*200*8*12 | 50.5 | 450*200*9*14 | 76.5 | 200*200*8*12 | 49.9 | 446*199*8*12 | 65.1 |
| 200*204*12*12 | 56.7 | 482*300*11*15 | 115 | 200*204*12*12 | 56.2 | 450*200*9*14 | 74.9 |
| 244*175*7*11 | 44.1 | 488*300*11*18 | 129 | 244*175*7*11 | 43.6 | 482*300*11*15 | 111 |
| 248*124*5*8 | 25.8 | 496*199*9*14 | 79.5 | 248*124*5*8 | 25.1 | 488*300*11*18 | 125 |
| 250*125*6*9 | 29.7 | 500*200*10*16 | 89.6 | 250*125*6*9 | 29 | 496*199*9*14 | 77.9 |
| 250*250*9*14 | 72.4 | 506*201*11*19 | 103 | 250*250*9*14 | 71.8 | 500*200*10*16 | 88.2 |
| 250*255*14*14 | 82.2 | 582*300*12*17 | 137 | 250*255*14*14 | 81.6 | 506*201*11*19 | 102 |
| 294*200*8*12 | 57.3 | 588*300*12*20 | 151 | 294*200*8*12 | 55.8 | 582*300*12*17 | 133 |
| 294*302*12*12 | 85 | 594*302*14*23 | 175 | 294*302*12*12 | 83.4 | 588*300*12*20 | 147 |
| 298*149*5.5*8 | 32.6 | 596*199*10*15 | 95.1 | 298*149*5.5*8 | 32 | 594*302*14*23 | 170 |
| 298*201*9*14 | 65.4 | 600*200*11*17 | 106 | 300*150*6.5*9 | 36.7 | 596*199*10*15 | 92.5 |
| 300*150*6.5*9 | 37.3 | 606*201*12*20 | 120 | 300*300*10*15 | 93 | 600*200*11*17 | 103 |
| 300*300*10*15 | 94.5 | 692*300*13*20 | 166 | 300*305*15*15 | 105 | 606*201*12*20 | 118 |
| 300*305*15*15 | 106 | 700“300*13-24 | 185 | 340*250*9*14 | 78.1 | 692*300*13*20 | 163 |
| 340*250*9*14 | 79.7 | 792*300*14*22 | 191 | 346*174*6*9 | 41.2 | 700*300*13*24 | 182 |
| 346*174*6*9 | 41.8 | 800*300*14*26 | 210 | 350*175*7*11 | 49.4 | 800*300*14*26 | 207 |
| 350*175*7*11 | 50 | 900*300*16*28 | 243 | 350*350*12*19 | 135 | ||
| 350*350*12*19 | 137 | ||||||
Production Flow Chart
Project Case
Pack And Ship
Certificate
Customer Praise
Plant And Equipment
FAQ
Q1: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, which is located in TIANJIN,CHINA. We have a leading power in producing and exporting galvanized steel coil,galvalume steel coil,ppgi etc. We promise that we are what you are looking for.
Q2:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q3: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q4: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q5: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to
quantity.
Q6:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.
Q7:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q8: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.
