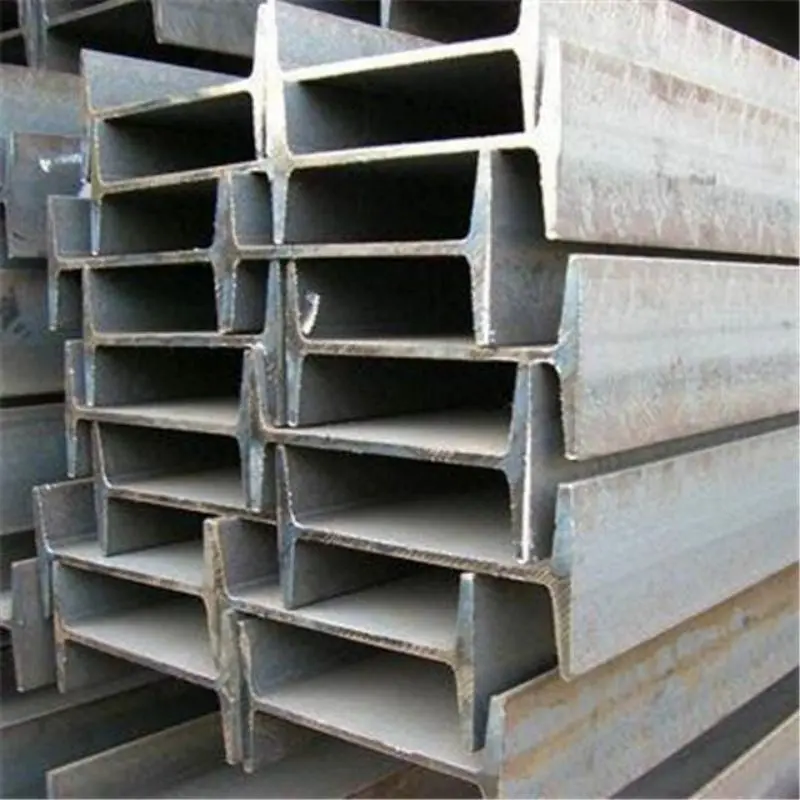

H Beam
Steel H Beam China Manufacture Ss540 S235 S275 S355 A36 Carbon Steel H-Shape With High Quality
Product Description
H-beams are used in construction and railways:
1. Whether H-beams are ordinary or light, because the cross-sectional dimensions are relatively high and narrow, the moments of inertia of the two main axes of the cross-section differ greatly, so It can only be used directly for members that are bent in the plane of their webs or to form lattice members.
2. The selection of H-beams in structural design should be based on its mechanical properties, chemical properties, weldability, structural dimensions, etc., and reasonable H-beams should be selected for use.
When used in bridges and oil drilling platforms, it is mainly used in the following:
1. It is used in the erection of construction bridges.
2. Applied to the bridge superstructure box girder construction as a support.
3. It is used as vertical corrugation or support when pouring large-volume concrete.
4. H-beams are used as construction measures and generally can be recycled
H-beams are mainly divided into ordinary H-beams, light H-beams and wide-flange H-beams. According to the height ratio of the flange to the web, it is divided into wide, medium and narrow wide flange H-beams.
Product Parameters
| GB H beam | JIS H beam | ||||||
| SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m |
| 100*100*6*8 | 17.2 | 390*300*10*16 | 107 | 100*100*6*8 | 16.9 | 388*402*15*15 | 140 |
| 125'125*6.5*9 | 23.8 | 396*199*7*11 | 56.7 | 125*125*6.5*9 | 23.6 | 390*300*10*16 | 105 |
| 150*75*5*7 | 14.3 | 400*150*8*13 | 55.8 | 150*75*5*7 | 14 | 396*199*7*11 | 56.1 |
| 148*100*6*9 | 21.4 | 400*200*8*13 | 66 | 148*100*6*9 | 20.7 | 400*200*8*13 | 65.4 |
| 150*150*7*10 | 31.9 | 400*400*13*21 | 172 | 150*150*7*10 | 31.1 | 400*150*8*13 | 55.2 |
| 175*90*5*8 | 18.2 | 400*408*21*21 | 197 | 175*90*5*8 | 18 | 400*400*13*21 | 172 |
| 175*175*7.5*11 | 40.4 | 414*405*18*28 | 233 | 175*175*7.5*11 | 40.4 | 400*408*21*21 | 197 |
| 194*150*6*9 | 31.2 | 428*407*20*35 | 284 | 194*150*6*9 | 29.9 | 414*405*18*28 | 232 |
| 198*99*4.5*7 | 18.5 | 440*300*11*18 | 124 | 198*99*4.5*7 | 17.8 | 428*407*20*35 | 283 |
| 200*100*5.5*8 | 21.7 | 446*199*8*12 | 65.5 | 200*100*5.5*8 | 20.9 | 440*300*11*18 | 121 |
| 200*200*8*12 | 50.5 | 450*200*9*14 | 76.5 | 200*200*8*12 | 49.9 | 446*199*8*12 | 65.1 |
| 200*204*12*12 | 56.7 | 482*300*11*15 | 115 | 200*204*12*12 | 56.2 | 450*200*9*14 | 74.9 |
| 244*175*7*11 | 44.1 | 488*300*11*18 | 129 | 244*175*7*11 | 43.6 | 482*300*11*15 | 111 |
| 248*124*5*8 | 25.8 | 496*199*9*14 | 79.5 | 248*124*5*8 | 25.1 | 488*300*11*18 | 125 |
| 250*125*6*9 | 29.7 | 500*200*10*16 | 89.6 | 250*125*6*9 | 29 | 496*199*9*14 | 77.9 |
| 250*250*9*14 | 72.4 | 506*201*11*19 | 103 | 250*250*9*14 | 71.8 | 500*200*10*16 | 88.2 |
| 250*255*14*14 | 82.2 | 582*300*12*17 | 137 | 250*255*14*14 | 81.6 | 506*201*11*19 | 102 |
| 294*200*8*12 | 57.3 | 588*300*12*20 | 151 | 294*200*8*12 | 55.8 | 582*300*12*17 | 133 |
| 294*302*12*12 | 85 | 594*302*14*23 | 175 | 294*302*12*12 | 83.4 | 588*300*12*20 | 147 |
| 298*149*5.5*8 | 32.6 | 596*199*10*15 | 95.1 | 298*149*5.5*8 | 32 | 594*302*14*23 | 170 |
| 298*201*9*14 | 65.4 | 600*200*11*17 | 106 | 300*150*6.5*9 | 36.7 | 596*199*10*15 | 92.5 |
| 300*150*6.5*9 | 37.3 | 606*201*12*20 | 120 | 300*300*10*15 | 93 | 600*200*11*17 | 103 |
| 300*300*10*15 | 94.5 | 692*300*13*20 | 166 | 300*305*15*15 | 105 | 606*201*12*20 | 118 |
| 300*305*15*15 | 106 | 700“300*13-24 | 185 | 340*250*9*14 | 78.1 | 692*300*13*20 | 163 |
| 340*250*9*14 | 79.7 | 792*300*14*22 | 191 | 346*174*6*9 | 41.2 | 700*300*13*24 | 182 |
| 346*174*6*9 | 41.8 | 800*300*14*26 | 210 | 350*175*7*11 | 49.4 | 800*300*14*26 | 207 |
| 350*175*7*11 | 50 | 900*300*16*28 | 243 | 350*350*12*19 | 135 | ||
| 350*350*12*19 | 137 | ||||||
Production Flow Chart
Project Case

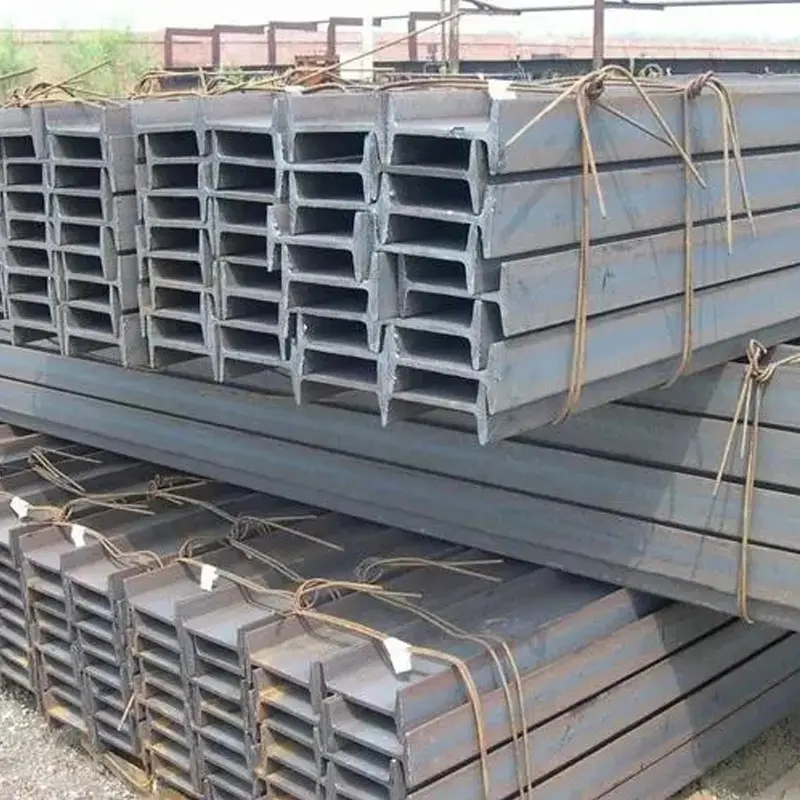

Pack And Ship
Certificate
Customer Praise
Plant And Equipment
FAQ
Q: What product information do I need to provide?
A: You need to provide grade, width, thickness and the ton you need to buy.
Q: About the product price?
A: Due to the cyclical changes in raw material prices, prices vary from period to period.
Q: What certifications do your products have?
A: We have ISO 9001, SGS and other certifications.
Q: How long does your delivery time take?
A: Generally, our delivery time is within 7-45 days, if there is a great demand or special circumstances, it may be delayed
.
Q: Can I visit your factory?
A: Of course, we welcome customers from all over the world to visit our factory.
