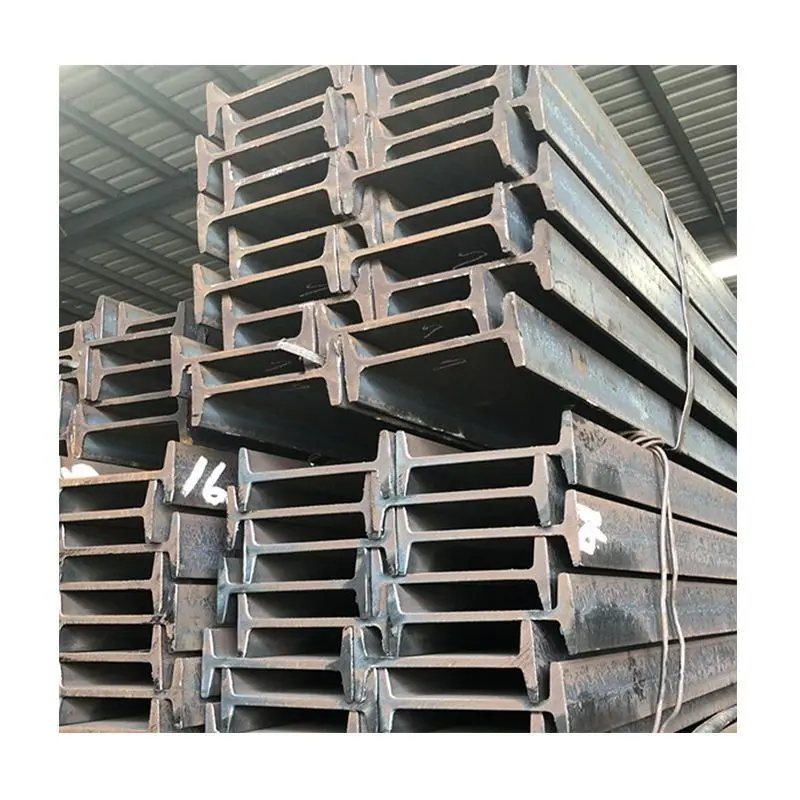

H Beam
1020 1040 1030 S235jr High Quality Hot Rolled I Shape Steel Structure H Beam 6m 8m 12m Length Steel H-Beam
Product Description
Petrochemical and electric power and other industrial equipment structures
For many years, H-beams and columns have been used as the basic components of beams and columns for the supporting structures of a large number of outdoor reels, towers and pipelines of the petrochemical system. In recent years, dozens of thermal power stations built in China have adopted imported rolled H-beam and column components for the boiler support rigid frames of dozens of thermal power stations in China almost without exception.
Long-span steel bridge components
For long-span truss steel bridge, the members of its truss and the bridge deck tie beam and support also often use H-shaped steel as the basic member, but because its members require wider flanges, it is limited in the application of H-shaped steel of rolled series.
Other applications
In addition to the above, in machinery and equipment manufacturing, vehicle and shipbuilding manufacturing, underground railway and viaduct construction, seismic and fire prevention and other temporary buildings and multi-storey buildings, H-beam and its split T-beam are also commonly used profiles.
For many years, H-beams and columns have been used as the basic components of beams and columns for the supporting structures of a large number of outdoor reels, towers and pipelines of the petrochemical system. In recent years, dozens of thermal power stations built in China have adopted imported rolled H-beam and column components for the boiler support rigid frames of dozens of thermal power stations in China almost without exception.
Long-span steel bridge components
For long-span truss steel bridge, the members of its truss and the bridge deck tie beam and support also often use H-shaped steel as the basic member, but because its members require wider flanges, it is limited in the application of H-shaped steel of rolled series.
Other applications
In addition to the above, in machinery and equipment manufacturing, vehicle and shipbuilding manufacturing, underground railway and viaduct construction, seismic and fire prevention and other temporary buildings and multi-storey buildings, H-beam and its split T-beam are also commonly used profiles.
Product Parameters
| GB H beam | JIS H beam | ||||||
| SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m |
| 100*100*6*8 | 17.2 | 390*300*10*16 | 107 | 100*100*6*8 | 16.9 | 388*402*15*15 | 140 |
| 125'125*6.5*9 | 23.8 | 396*199*7*11 | 56.7 | 125*125*6.5*9 | 23.6 | 390*300*10*16 | 105 |
| 150*75*5*7 | 14.3 | 400*150*8*13 | 55.8 | 150*75*5*7 | 14 | 396*199*7*11 | 56.1 |
| 148*100*6*9 | 21.4 | 400*200*8*13 | 66 | 148*100*6*9 | 20.7 | 400*200*8*13 | 65.4 |
| 150*150*7*10 | 31.9 | 400*400*13*21 | 172 | 150*150*7*10 | 31.1 | 400*150*8*13 | 55.2 |
| 175*90*5*8 | 18.2 | 400*408*21*21 | 197 | 175*90*5*8 | 18 | 400*400*13*21 | 172 |
| 175*175*7.5*11 | 40.4 | 414*405*18*28 | 233 | 175*175*7.5*11 | 40.4 | 400*408*21*21 | 197 |
| 194*150*6*9 | 31.2 | 428*407*20*35 | 284 | 194*150*6*9 | 29.9 | 414*405*18*28 | 232 |
| 198*99*4.5*7 | 18.5 | 440*300*11*18 | 124 | 198*99*4.5*7 | 17.8 | 428*407*20*35 | 283 |
| 200*100*5.5*8 | 21.7 | 446*199*8*12 | 65.5 | 200*100*5.5*8 | 20.9 | 440*300*11*18 | 121 |
| 200*200*8*12 | 50.5 | 450*200*9*14 | 76.5 | 200*200*8*12 | 49.9 | 446*199*8*12 | 65.1 |
| 200*204*12*12 | 56.7 | 482*300*11*15 | 115 | 200*204*12*12 | 56.2 | 450*200*9*14 | 74.9 |
| 244*175*7*11 | 44.1 | 488*300*11*18 | 129 | 244*175*7*11 | 43.6 | 482*300*11*15 | 111 |
| 248*124*5*8 | 25.8 | 496*199*9*14 | 79.5 | 248*124*5*8 | 25.1 | 488*300*11*18 | 125 |
| 250*125*6*9 | 29.7 | 500*200*10*16 | 89.6 | 250*125*6*9 | 29 | 496*199*9*14 | 77.9 |
| 250*250*9*14 | 72.4 | 506*201*11*19 | 103 | 250*250*9*14 | 71.8 | 500*200*10*16 | 88.2 |
| 250*255*14*14 | 82.2 | 582*300*12*17 | 137 | 250*255*14*14 | 81.6 | 506*201*11*19 | 102 |
| 294*200*8*12 | 57.3 | 588*300*12*20 | 151 | 294*200*8*12 | 55.8 | 582*300*12*17 | 133 |
| 294*302*12*12 | 85 | 594*302*14*23 | 175 | 294*302*12*12 | 83.4 | 588*300*12*20 | 147 |
| 298*149*5.5*8 | 32.6 | 596*199*10*15 | 95.1 | 298*149*5.5*8 | 32 | 594*302*14*23 | 170 |
| 298*201*9*14 | 65.4 | 600*200*11*17 | 106 | 300*150*6.5*9 | 36.7 | 596*199*10*15 | 92.5 |
| 300*150*6.5*9 | 37.3 | 606*201*12*20 | 120 | 300*300*10*15 | 93 | 600*200*11*17 | 103 |
| 300*300*10*15 | 94.5 | 692*300*13*20 | 166 | 300*305*15*15 | 105 | 606*201*12*20 | 118 |
| 300*305*15*15 | 106 | 700“300*13-24 | 185 | 340*250*9*14 | 78.1 | 692*300*13*20 | 163 |
| 340*250*9*14 | 79.7 | 792*300*14*22 | 191 | 346*174*6*9 | 41.2 | 700*300*13*24 | 182 |
| 346*174*6*9 | 41.8 | 800*300*14*26 | 210 | 350*175*7*11 | 49.4 | 800*300*14*26 | 207 |
| 350*175*7*11 | 50 | 900*300*16*28 | 243 | 350*350*12*19 | 135 | ||
| 350*350*12*19 | 137 | ||||||
Production Flow Chart
Project Case
Pack And Ship
Service Process
From the moment of careful selection of raw materials to the final fine processing, we rely on state-of-the-art equipment and strict quality control processes. Our dedication to innovation allows us to continuously improve and optimize, explore new alloy materials, and refine production technologies to improve the overall performance of steel.
The steel we produce is not only durable, but also makes a positive contribution to the environment. Our commitment to sustainability is reflected in our commitment to reducing waste and improving energy efficiency in our production processes. As technology continues to advance, we continue to redefine what's possible in steel manufacturing and challenge new heights of excellence.
Certificate
Customer Praise
Plant And Equipment
We have advanced production equipment and a professional technical team. From raw material procurement to product production and global sales, we have achieved seamless full-process management.
FAQ
Q: Can you send samples?
A: Of course, we can send samples to all over the world, our samples are free, but customers need to afford the express cost.
Q: What product information do I need to provide?
A: You need to provide the grade, size and quantity you need to purchase.
Q: What shipping ports are there?
A: Generally, we ship from Shanghai, Tianjin, Qingdao ports, and other ports can also be selected according to your needs.
Q: About the product price?
A: Due to the cyclical changes in raw material prices, prices vary in different periods.
Q: What certifications do your products have?
A: We have ISO 9001, SGS, CE and other certifications.
Q: How do you ship the goods and how long does it take to arrive?
A: Samples are usually shipped by DHL, UPS, FedEx or TNT. Airline and sea transportation are also optional, we will provide you with the fastest transportation plan according to the situation.
Q: Can I visit your factory?
A: Of course, we welcome customers from all over the world to visit our factory.
Q:Is there any quality inspection before product loading?
A: Of course, all of our products have been strictly inspected for quality before packaging, and unqualified products will be
destroyed.
Q: How is the product packaged?
A: The inner layer has waterproof paper and the outer layer has iron packaging, and it is fixed with fumigated wooden pallets. it can Effectively protect products from corrosion during ocean transportation. Of course, we can also customize special packaging according to your requirements.
