Innovative Steel Sheet Piling: A Versatile Solution for Modern Construction

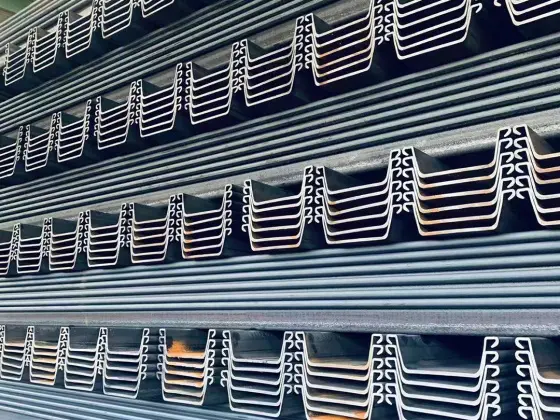

Steel sheet piles, known for their high strength, flexibility, and excellent water-sealing properties, have become a cornerstone in both permanent and temporary construction projects. With cross-sectional shapes primarily categorized into U-type, Z-type, and W-type, these piles are further classified into lightweight (4–7mm thickness) and standard (8–12mm thickness) variants. In Asia, the U-type interlocking Larssen sheet pile is the most widely used.

Applications: From Infrastructure to Emergency Response
Steel sheet piles are indispensable across diverse sectors:

• Permanent Structures: Ports, docks, retaining walls, seawalls, breakwaters, sluice gates, and flood control systems.

• Temporary Projects: Bridge cofferdams, pipeline trenches, temporary embankments, and excavation support for soil/water/sand retention.

• Disaster Relief: Rapid deployment for flood prevention, landslide stabilization, and sand erosion control.

Their adaptability makes them ideal for large-scale civil engineering projects, including foundations, underground utilities, and coastal protection.

Key Advantages

1. Efficiency & Durability: Simplified construction shortens project timelines, while a lifespan exceeding 50 years ensures long-term performance.

2. Cost-Effective: Reusability (up to 58 cycles) and reduced need for concrete/earthworks lower costs and minimize environmental impact.

3. Eco-Friendly: Significantly cuts soil extraction and concrete usage, preserving land resources.

4. Corrosion-Resistant: Often coated with protective materials to withstand harsh environments.

Installation & Types
Installed via pile drivers, interlocked sheet piles form continuous barriers for earth/water retention. Two manufacturing methods dominate:

• Cold-Formed Steel Sheet Piles: Roll-pressed into Z, U, or other profiles, ideal for moderate loads.

• Hot-Rolled Steel Sheet Piles: Higher load-bearing capacity for heavy-duty applications like ports and deep foundations.

As urbanization and climate challenges escalate, Steel Sheet piles offer a sustainable, resilient, and economical solution for global infrastructure needs. Their versatility in construction and emergency scenarios underscores their enduring relevance in engineering.
