Welded pipes and seamless steel pipes: uses, characteristics and how to choose

Characteristics and uses of welded pipes

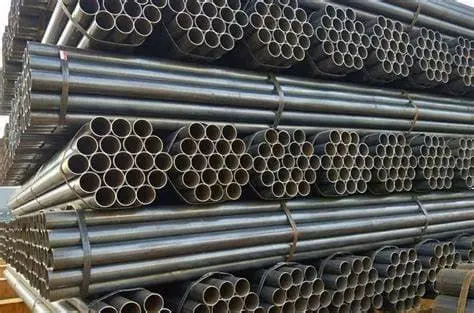

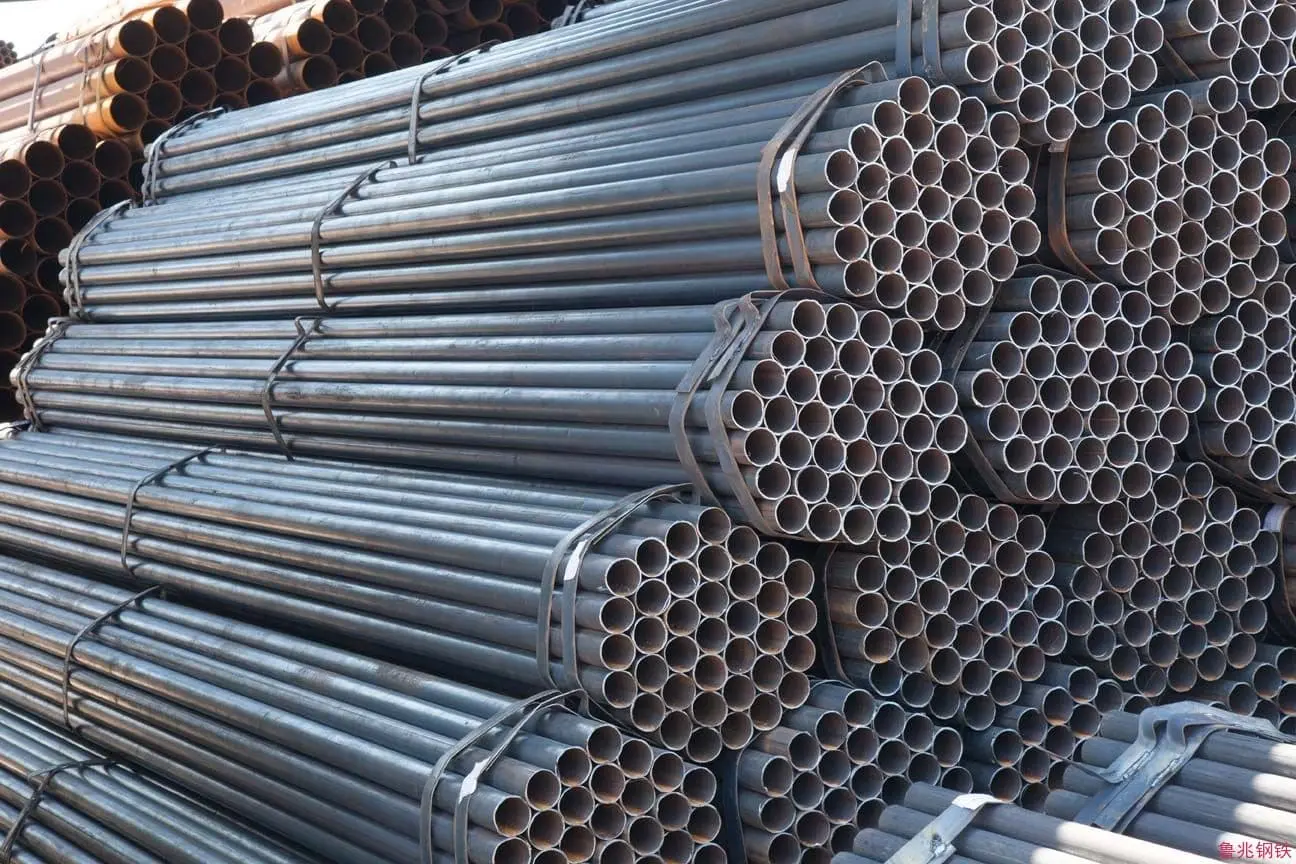

Welded pipe,as the name suggests, is a pipe made by rolling a steel plate or strip into a tube shape and welding it through a welding process. Welded Pipes have the following significant characteristics:


1. High production efficiency: The production process of welded pipes is relatively simple, which can realize continuous and automated production, which greatly improves the production efficiency.

2. Low cost: Due to the relatively simple production process and high material utilization rate of welded pipes, its cost is relatively low, which is suitable for large-volume, low-cost application scenarios.

3. Various specifications: welded pipes can produce pipes with different diameters, wall thicknesses and lengths according to demand to meet various engineering needs.

Welded pipes are widely used in construction, bridges, pipeline transportation, machinery manufacturing and other fields. In the construction field, welded pipes are often used in steel structure frames, supports and protective railings; In the field of pipeline transportation, welded pipes are used to transport water, gas, oil and other fluid media.

Characteristics and uses of seamless steel pipes

Seamless steel pipesare made by perforation, hot rolling, cold drawing or cold rolling, and there are no welds on the pipe walls. SeamleSs Steel pipes have the following significant characteristics:

1. Strong pressure-bearing capacity: Since the seamless steel pipe has no welds, its overall structure is more uniform, so it has a higher pressure-bearing capacity, which is suitable for use in harsh environments such as high pressure and high temperature.

2. High precision: The inner and outer walls of the seamless steel pipe are smooth and the dimensional accuracy is high, which is suitable for occasions with high requirements for fluid resistance and flow control.

3. Good corrosion resistance: Seamless steel pipes can be made of special materials and surface treatment technologies to improve their corrosion resistance and prolong their service life.

Seamless steel pipes are widely used in petroleum, chemical industry, electric power, nuclear energy and other fields. In the petroleum industry, seamless steel pipes are used in key parts such as oil well drilling and oil and gas transmission pipelines; In the chemical industry, seamless steel pipes are used in corrosion-resistant, high-temperature resistant piping systems.

The selection of welded pipes and seamless steel pipes

In practical applications, how to choose the right welded pipe or seamless steel pipe according to the engineering needs? Here are some suggestions:

1. Consider the use environment: First of all, you need to choose the appropriate pipe according to the environment and use conditions of the project. For example, in high-temperature, high-pressure or corrosive environments, the use of seamless steel pipes should be preferred; In general construction or low-pressure conveying occasions, welded pipes are an economical and practical choice.

2. Pay attention to pipe specifications: choose the appropriate pipe specifications according to the engineering needs. Both welded and seamless steel pipes are available in a variety of specifications, including diameter, wall thickness, length, and more. When selecting, the overall layout and fluid characteristics of the pipeline system should be fully considered to ensure that the selected pipes meet the engineering requirements.

3. Pay attention to material quality: Whether it is a welded pipe or a seamless steel pipe, the quality of the material is a key factor in determining its performance and service life. Therefore, when selecting pipes, we should pay attention to the chemical composition, mechanical properties, corrosion resistance and other indicators of the materials to ensure that the selected pipes meet the requirements of relevant standards and specifications.

4. Consider the cost factor: On the premise of meeting the engineering needs, the cost factor also needs to be considered. Generally speaking, the production cost of welded pipes is low and the price is relatively cheap; However, the cost of seamless steel pipes is high due to the complex production process. Therefore, when selecting pipes, comprehensive consideration should be made according to the project budget and economic benefits.

To sum up, welded pipes and seamless steel pipes have their own characteristics and application scenarios. In practical application, the most suitable pipe type should be selected according to the engineering requirements, use environment, pipe specifications, material quality and cost factors. Through the scientific and reasonable selection and application of these two kinds of steel pipes, we can provide safe, reliable and economical pipeline solutions for all kinds of projects.
