Steel Structure Warehouse Steel Structure Building Steel Buildings

Steel Structure

Steel Structure Warehouse Steel Structure Building Steel Buildings

name Steel structure
Steel column
Q235,355B welded square tube column/Box column
Steel beam
Q235,355B welded H section steel/hot-rolled H section steel
Steel purlin
C/Z section purlin or square tube column
Gutter
Stainless steel gutter/UPVC gutter
    微信图片_20250508144841

    Item Materials Remark
    Steel Frame 1 H section column and beam Q345 steel, paint or galvanization
    2 wind resistant column Q345 steel,paint or galvanization
    3 Roof purline Q235B C/Z section galvanized steel
    4 Wall purline Q235B C/Z section galvanized steel
    Supporting system 1 Tie bar Q235 round steel pipe
    2 knee brace angle steel  L50*4,Q235
    3 roof horizontal bracing φ20,Q235B steel bar, paint or galvanized
    4 column vertical bracing φ20,Q235B steel bar, paint or galvanized
    5 purline brace Φ12 round bar Q235
    6 knee brace angle steel, L50*4,Q235
    7 casing pipe φ32*2.0,Q235 steel pipe
    8 gable angle steel M24 Q235B
    Roof and wall  1 Wall and roof panel corrugated steel sheet/sandwich panel
    protecting system 2 self tapping screw
      3 Ridge tile color steel sheet
      4 gutter color steel sheet/galvanized steel/stainless steel
      5 down pipe
      6 corner trim color steel sheet
    Fastener system  1  Anchor bolts Q235 steel
    2 Bolts
    3 Nuts

    OEM Prefabricated Steel Structure Building Stud-farm Riding Horse Farm Racecourse Shed
    Steel structure is a structure made of steel materials and is one of the main types of building structures. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of steel sections and steel plates, and adopts rust removal and rust prevention processes such as silanization, pure manganese phosphating, water washing and drying, and galvanizing. The components or parts are usually connected by welds, bolts or rivets. Because of its light weight and simple construction, it is widely used in large factories, venues, super high-rise buildings, bridges and other fields. Steel structures are prone to rust. Generally, steel structures need to be rust-free, galvanized or painted, and maintained regularly.
    微信图片_20250508144119
    Steel structure is a structure made of steel materials and is one of the main types of building structures. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of steel sections and steel plates, and adopts rust removal and rust prevention processes such as silanization, pure manganese phosphating, water washing and drying, and galvanizing. The components or parts are usually connected by welds, bolts or rivets. Because of its light weight and simple construction, it is widely used in large factories, venues, super high-rise buildings, bridges and other fields. Steel structures are prone to rust. Generally, steel structures need to be rust-free, galvanized or painted, and maintained regularly.微信图片_20250508144125

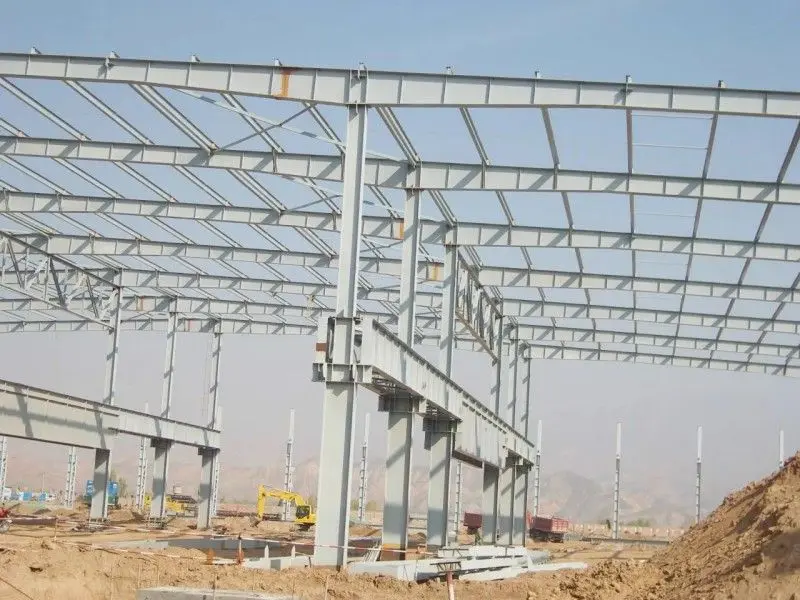

    Steel Structure Warehouse Short Introduce:

    Steel structure plant mainly refers to the main load-bearing components are composed of steel. Including steel pillars, steel beams, steel structure foundation, steel roof frame, steel roofing sheet.
    Steel walls can also be enclosed with brick walls.

    Steel structure factory features:
    1: steel structure construction of light quality, high strength, large span.
    2: steel structure construction period is short, corresponding to reduce the investment cost.
    3: steel structure building is easy to move, recycling and pollution-free.
    6

    微信图片_2025050814400289

    Q: Are you a manufacturer? A: Yes , we are a manufacturer, not agent. We have own factory, which is located in Hebei,CHINA. We have a leading power in producing and exporting. We promise that we are what you are looking for. Welcome to contact us. Q: Do you provide online installation service? A:We provide very detailed installation instruction drawings and videos for every project.We provide online installation guidance services. Q: How to control the quality of your product? A:(1) quality of the design: think about possible problems in advance and provide a high-quality design solution. (2) quality of the raw material: choose the qualified raw material (3) quality of the production: precise manufacturing technique, experienced workers, strict quality inspection. Q: What designs do you have in different climates (How can the products adopt to different climates)? A:Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve the anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
