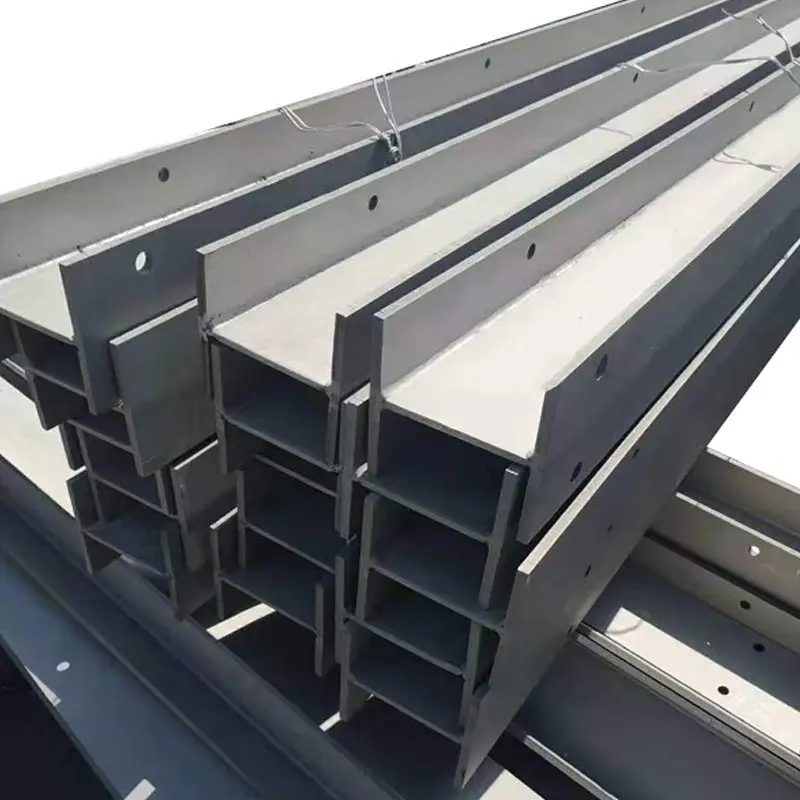

H Beam
Manufacturer ASTM Grade Standard H Beam I Beam Carbon for Steel Frame Hot Rolled Iron Structural
Product Description
American standard H-beam is very suitable for the manufacture of vehicle chassis due to its high strength, light weight and high rigidity. At the same time, it can also be used to manufacture key parts such as vehicle portals and body supports to enhance the overall rigidity and anti-deformation ability of the vehicle.
American standard H-beam has an indispensable position in various fields with its excellent performance and wide range of applications. Whether it is construction, bridges or mechanical equipment, American standard H-beam plays an important role and provides high-quality steel solutions for various engineering projects.
The flanges of the steel are parallel or nearly parallel inside and outside, and the flange ends are at right angles, hence the name parallel flange I-beam. The web thickness of H-beam is smaller than that of ordinary I-beam with the same web height, and the flange width is larger than that of ordinary I-beam with the same web height, hence the name wide flange I-beam. Determined by the shape, the section modulus, moment of inertia and corresponding strength of H-beam are significantly better than ordinary I-beam with the same single weight.
Product Parameters
| GB H beam | JIS H beam | ||||||
| SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m | SIZE(mm) | KG/m |
| 100*100*6*8 | 17.2 | 390*300*10*16 | 107 | 100*100*6*8 | 16.9 | 388*402*15*15 | 140 |
| 125'125*6.5*9 | 23.8 | 396*199*7*11 | 56.7 | 125*125*6.5*9 | 23.6 | 390*300*10*16 | 105 |
| 150*75*5*7 | 14.3 | 400*150*8*13 | 55.8 | 150*75*5*7 | 14 | 396*199*7*11 | 56.1 |
| 148*100*6*9 | 21.4 | 400*200*8*13 | 66 | 148*100*6*9 | 20.7 | 400*200*8*13 | 65.4 |
| 150*150*7*10 | 31.9 | 400*400*13*21 | 172 | 150*150*7*10 | 31.1 | 400*150*8*13 | 55.2 |
| 175*90*5*8 | 18.2 | 400*408*21*21 | 197 | 175*90*5*8 | 18 | 400*400*13*21 | 172 |
| 175*175*7.5*11 | 40.4 | 414*405*18*28 | 233 | 175*175*7.5*11 | 40.4 | 400*408*21*21 | 197 |
| 194*150*6*9 | 31.2 | 428*407*20*35 | 284 | 194*150*6*9 | 29.9 | 414*405*18*28 | 232 |
| 198*99*4.5*7 | 18.5 | 440*300*11*18 | 124 | 198*99*4.5*7 | 17.8 | 428*407*20*35 | 283 |
| 200*100*5.5*8 | 21.7 | 446*199*8*12 | 65.5 | 200*100*5.5*8 | 20.9 | 440*300*11*18 | 121 |
| 200*200*8*12 | 50.5 | 450*200*9*14 | 76.5 | 200*200*8*12 | 49.9 | 446*199*8*12 | 65.1 |
| 200*204*12*12 | 56.7 | 482*300*11*15 | 115 | 200*204*12*12 | 56.2 | 450*200*9*14 | 74.9 |
| 244*175*7*11 | 44.1 | 488*300*11*18 | 129 | 244*175*7*11 | 43.6 | 482*300*11*15 | 111 |
| 248*124*5*8 | 25.8 | 496*199*9*14 | 79.5 | 248*124*5*8 | 25.1 | 488*300*11*18 | 125 |
| 250*125*6*9 | 29.7 | 500*200*10*16 | 89.6 | 250*125*6*9 | 29 | 496*199*9*14 | 77.9 |
| 250*250*9*14 | 72.4 | 506*201*11*19 | 103 | 250*250*9*14 | 71.8 | 500*200*10*16 | 88.2 |
| 250*255*14*14 | 82.2 | 582*300*12*17 | 137 | 250*255*14*14 | 81.6 | 506*201*11*19 | 102 |
| 294*200*8*12 | 57.3 | 588*300*12*20 | 151 | 294*200*8*12 | 55.8 | 582*300*12*17 | 133 |
| 294*302*12*12 | 85 | 594*302*14*23 | 175 | 294*302*12*12 | 83.4 | 588*300*12*20 | 147 |
| 298*149*5.5*8 | 32.6 | 596*199*10*15 | 95.1 | 298*149*5.5*8 | 32 | 594*302*14*23 | 170 |
| 298*201*9*14 | 65.4 | 600*200*11*17 | 106 | 300*150*6.5*9 | 36.7 | 596*199*10*15 | 92.5 |
| 300*150*6.5*9 | 37.3 | 606*201*12*20 | 120 | 300*300*10*15 | 93 | 600*200*11*17 | 103 |
| 300*300*10*15 | 94.5 | 692*300*13*20 | 166 | 300*305*15*15 | 105 | 606*201*12*20 | 118 |
| 300*305*15*15 | 106 | 700“300*13-24 | 185 | 340*250*9*14 | 78.1 | 692*300*13*20 | 163 |
| 340*250*9*14 | 79.7 | 792*300*14*22 | 191 | 346*174*6*9 | 41.2 | 700*300*13*24 | 182 |
| 346*174*6*9 | 41.8 | 800*300*14*26 | 210 | 350*175*7*11 | 49.4 | 800*300*14*26 | 207 |
| 350*175*7*11 | 50 | 900*300*16*28 | 243 | 350*350*12*19 | 135 | ||
| 350*350*12*19 | 137 | ||||||
Production Flow Chart
Project Case
Pack And Ship
Certificate
Customer Praise
Plant And Equipment
FAQ
Q1: What are main products in your factory?
A: Our company's products include non-alloy steel products such as carbon steel pipe/sheet/rebar and 200, 300, 400 series stainless steel plate, sheet, coil, and also stainless steel pipe, tube, stainless steel round bar, stainless steel square/rectangle/deformed bar, galvanized/gavalumed sheet/pipe/coil/PPGI.
Moreover, we produce aluminum sheet/plate/coil/circle/disc, with sufficient inventory. Our products are widely used in machinery, chemical industry, petroleum, boilers, heat exchangers, food machinery, beverage machinery, medical equipment and other industries.
Q2: How do you control quality ?
A: Third Party Inspection is available, also we are ISO, CE, Alibaba Verified. Furthermore mill Test Certification is available with shipment. Our quality management system conforms to the requirement of ISO 9001:2015 verified by TUV. We accept trial order
to enhance mutual trust.
Q3: Why choose us ?
A: We are factory direct supplier, with competitive quality and price, and also brilliant services.
